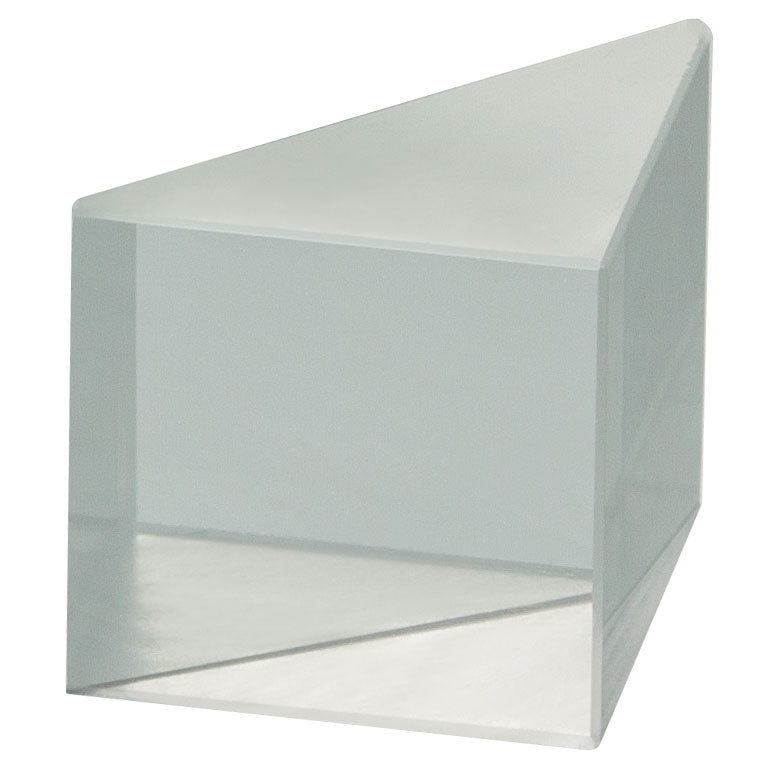

T-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mm
T-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mm
T-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mm
T-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mm
Roll over image to zoom in Click on image to zoom
T-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mmT-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mmT-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mmT-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mm

T-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mm

Fosco ConnectSKU: T-PS707
Price:
$ 750.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-PS707 - CaF2 Right-Angle Prism, Uncoated, L = 15 mm

Product Drawing

  • Sizes Ranging from 3 mm to 60 mm
  • Fabricated from N-BK7, UV Fused Silica, CaF2, or ZnSe
  • N-BK7 Prisms Available with an AR Coating on the Hypotenuse or Both Legs
Item # Material L X Angle Tolerance Dimensional Tolerance
T-PS703 CaF2 10 mm 14.1 mm ±10 arcmin +0.0/-0.3 mm
T-PS706 12.5 mm 17.7 mm ±10 arcmin ±0.2 mm
T-PS707 15 mm 21.2 mm ±10 arcmin ±0.2 mm
T-PS704 25 mm 35.4 mm ±10 arcmin +0.0/-0.3 mm
