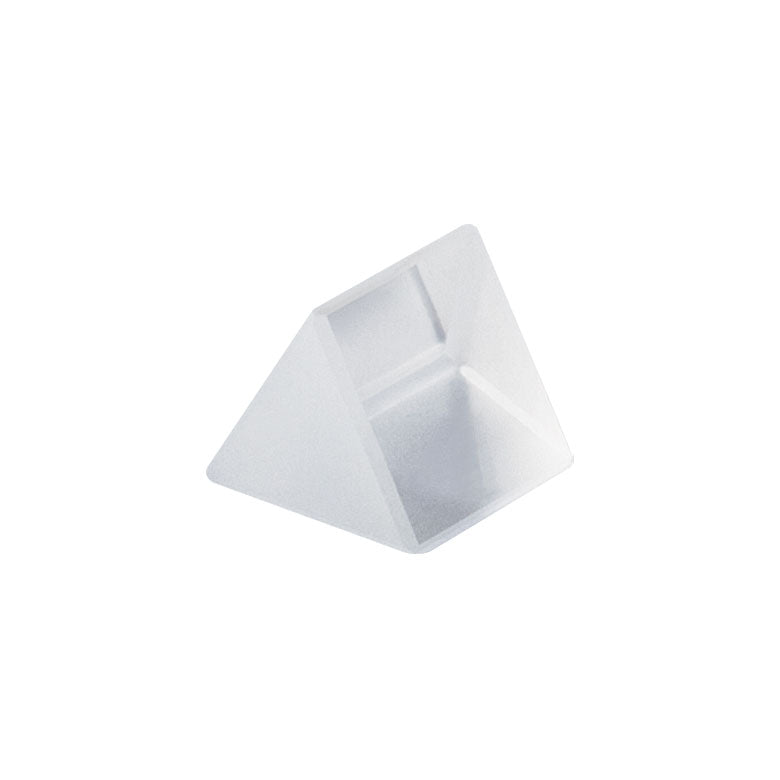

T-PS850 - F2 Equilateral Dispersive Prism, 10 mm
T-PS850 - F2 Equilateral Dispersive Prism, 10 mm T-PS850 - F2 Equilateral Dispersive Prism, 10 mm T-PS850 - F2 Equilateral Dispersive Prism, 10 mm T-PS850 - F2 Equilateral Dispersive Prism, 10 mm T-PS850 - F2 Equilateral Dispersive Prism, 10 mm



T-PS850 - F2 Equilateral Dispersive Prism, 10 mm

Fosco Connect Part No.: T-PS850

  • $ 175.00 or

T-PS850 - F2 Equilateral Dispersive Prism, 10 mm

Product Drawing

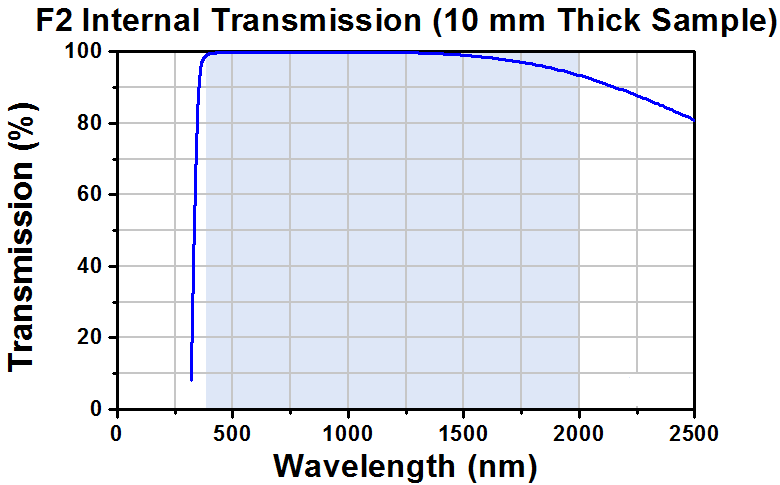

F2 is a flint glass that offers excellent performance in the visible and NIR spectral range. It offers a high refractive index and low Abbe number, making it excellent for use in an equilateral dispersive prism. Compared to N-SF11, it offers superior chemical resistance and slightly higher transmission.

Polarization Effects

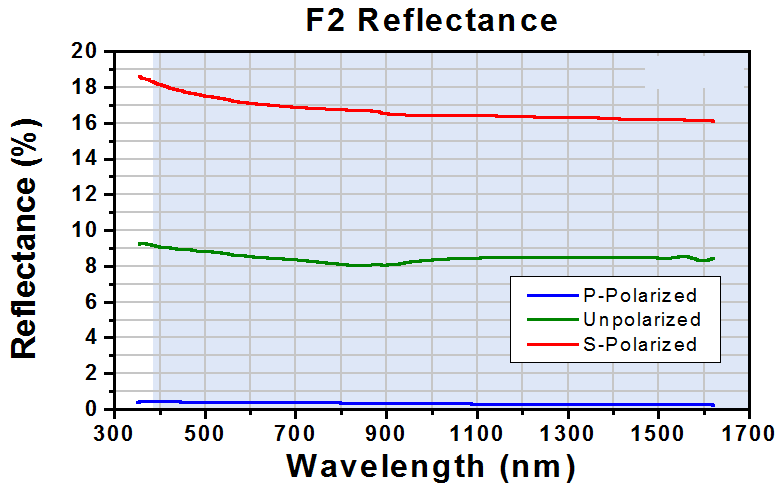

For P-polarized light (blue line) incident on a dispersing prism at the angle of least deviation, the graph to the right shows that only a small percentage of the P-polarized light is reflected at the surface. Thus, for this polarization, the transmission through a prism fabricated from F2 will be excellent even though there is no AR coating on the surface.

Material Wavelength Range Index of Refraction Abbe Number
F2 385 nm - 2 µm 1.617 @ 633 nm 36.37



Item # A=B=C=H
(mm)		 Material Minimum Angle
of Deviation		 V Surface Flatness
@ 633 nm
T-PS850 10 ± 0.15 F2 47.9° @ 633 nm 36.37 λ/10



Material Minimum Angle
of Deviation		 Vdb Surface Flatness
@ 633 nm		 Clear
Aperture		 Surface
Quality		 Angular
Tolerance		 Number of

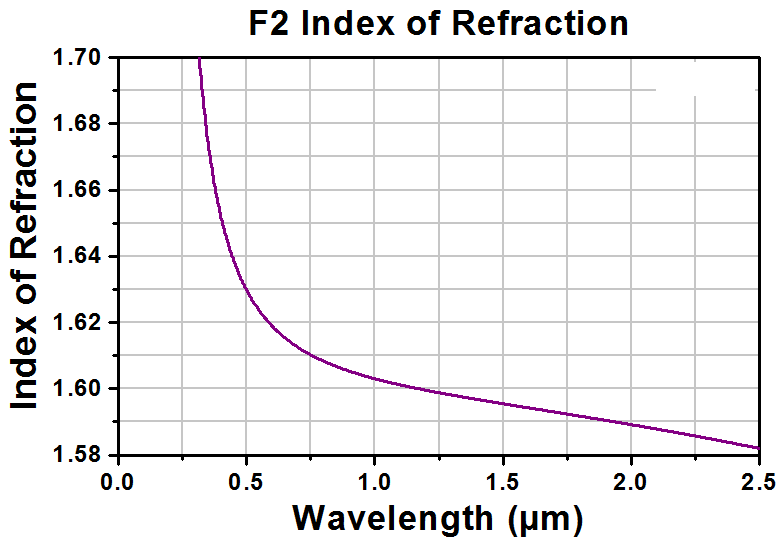

Polished Faces		 Index of
Refraction Plot
F2 47.9° @ 633 nm 36.37 λ/10 70% 40-20 Scratch-Dig ±5 arcmin 2 Click
