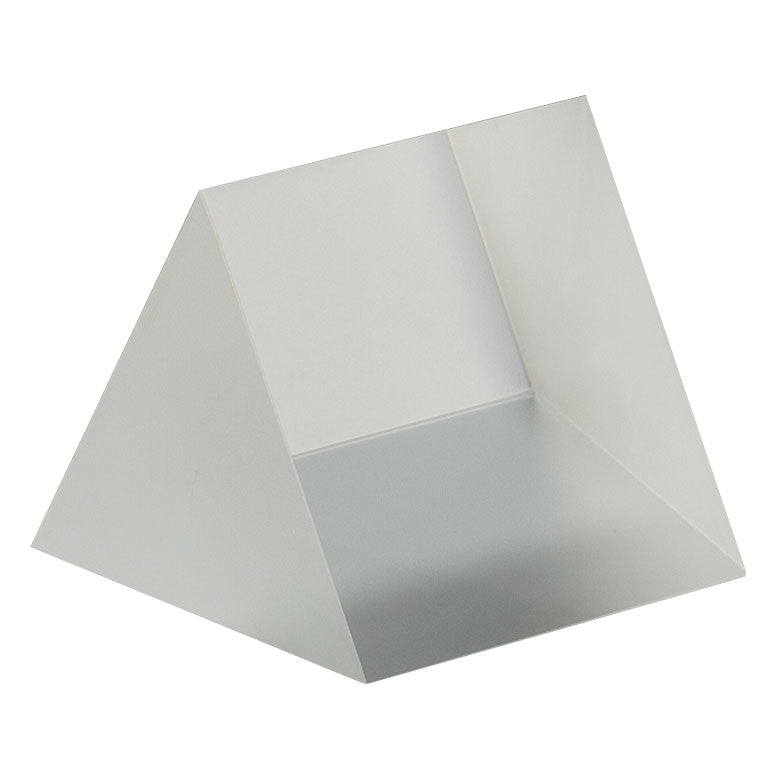

T-PS854 - N-F2 Equilateral Dispersive Prism, 50 mm

Part No.: T-PS854

$ 439.00

T-PS854 - N-F2 Equilateral Dispersive Prism, 50 mm

Product Drawing

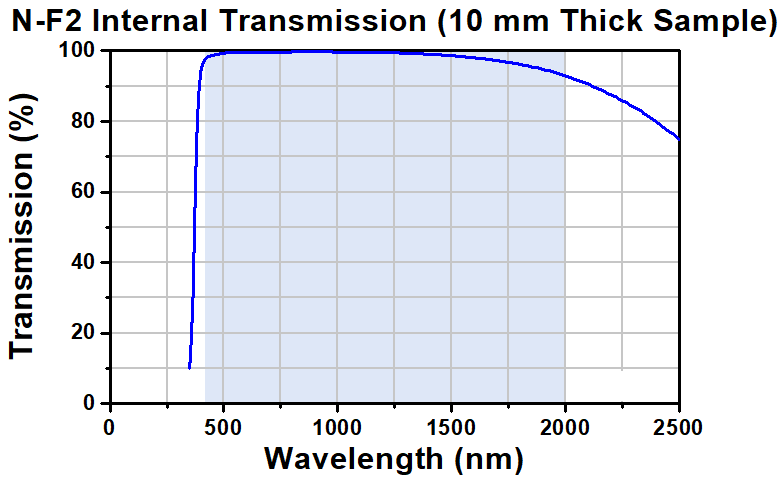

N-F2 is a RoHS compliant material that has been engineered to have nearly identical optical properties as F2. Like F2, it is a flint glass that offers excellent performance in the visible and NIR spectral range. It offers a high refractive index and low Abbe number, making it excellent for use in an equilateral dispersive prism.

Polarization Effects
For P-polarized light (blue line) incident on a dispersing prism at the angle of least deviation, the graph to the right shows that only a small percentage of the P-polarized light is reflected at the surface. Thus, for this polarization, the transmission through a prism fabricated from N-F2 will be excellent even though there is no AR coating on the surface.

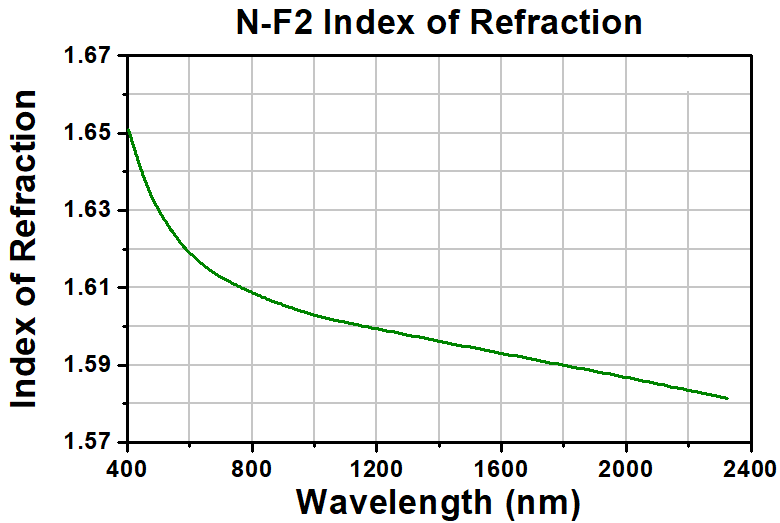

Material	Minimum Angle of Deviation	V	Surface Flatness @ 633 nm	Clear Aperture	Surface Quality	Angular Tolerance	Number of Polished Faces	Index of Refraction Plot
N-F2	47.9° @ 633 nm	36.43	λ/10	70%	40-20 Scratch-Dig	±5 arcmin	2	Click
