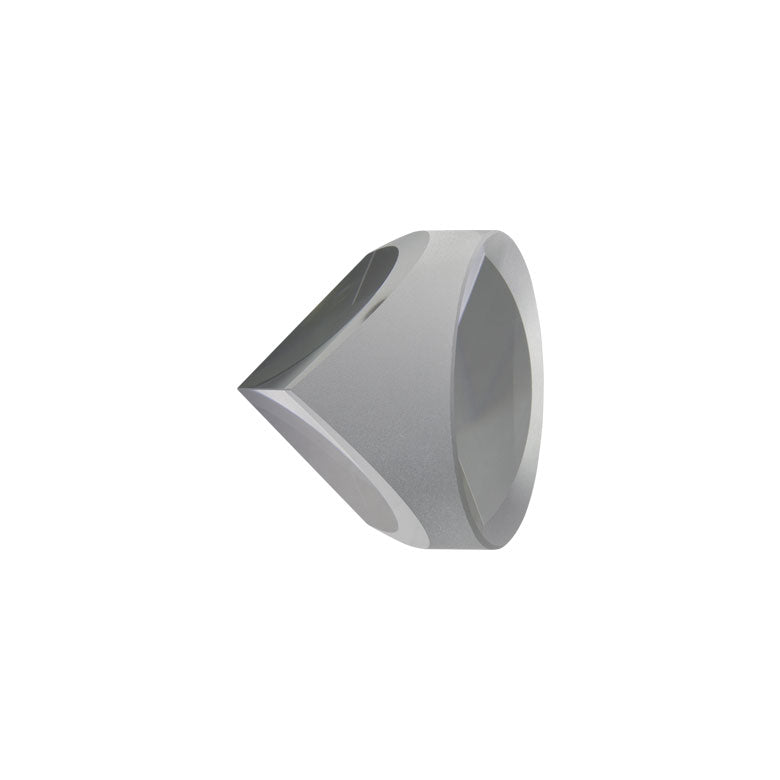

T-PS974-A - TIR Retroreflector, Ø10.0 mm, L = 9.0 mm, AR Coating: 350 - 700 nm

Fosco Connect Part No.: T-PS974-A

  • $ 265.00 or



T-PS974-A - TIR Retroreflector, Ø10.0 mm, L = 9.0 mm, AR Coating: 350 - 700 nm

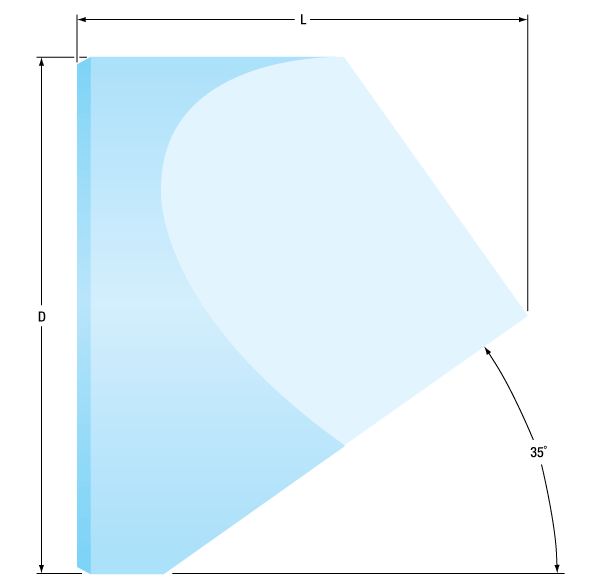

Product Drawing

  • Reflects an Inverted and Reversed Image 180°
  • Four Prism Sizes Available:
    • Ø10.0 mm
    • Ø12.7 mm
    • Ø25.4 mm
    • Ø50.0 mm
  • Four Coating Options:
    • Uncoated (350 - 2000 nm)

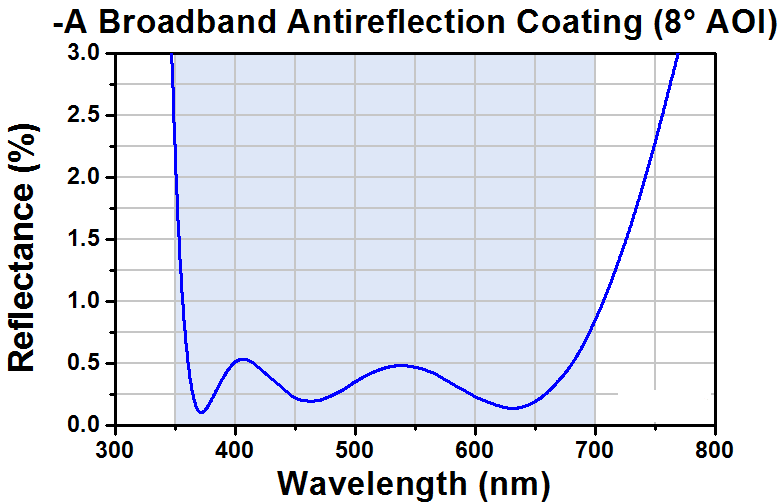

    • -A Coated Entrance Face (350 - 700 nm)
    • -B Coated Entrance Face (650 -1050 nm)
    • -C Coated Entrance Face (1050 - 1700 nm)
  • Wavelength Range 350 - 700 nm
  • Surface Flatness  λ/10 @ 633 nm
  • Clear Aperture Ø7.0 mm
  • Damage Threshold 7.5 J/cm2 at 532 nm, 10 ns, 10 Hz, Ø0.456 mm
  • Length (L) 9.0 mm
  • Diameter (D) Ø10.0 mm
  • Max Beam Diameter Ø0.13" (3.302 mm)
