T-PS992-B - Dove Prism, A = 15 mm, N-BK7, ARC: 650 - 1050 nm
T-PS992-B - Dove Prism, A = 15 mm, N-BK7, ARC: 650 - 1050 nm
- AR Coated for the 650 nm to 1050 nm Wavelength Range
- Available in One Size: A = 15 mm, L = 63.4 mm
- Rotate or Invert an Image
AR Coating Specifications | |
---|---|
Item # | T-PS992-B |
Wavelength Range | 650-1050 NM |
Reflectance Over AR Coating Range (Avg., AOI = 45° with Respect to the Coated Surface) |
<1% |
AR-Coated Surfacesa | S1 and S2 |

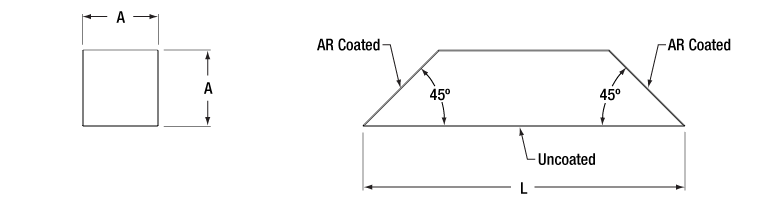

This Dove prism has a 15 mm square cross section and an AR coating for 650 to 1050 nm deposited on the two angled faces.
This coating provides an average reflectance of <1% over the specified wavelength range. For a plot of the reflectance versus wavelength, please see the Graphs tab.
The two angled faces of a Dove prism are typically used together to rotate an image. With an AR coating on both angled faces, this prism is specifically designed for image inversion and rotation. Please note that the AR coating makes these prisms unsuitable for use as retroreflectors. For retroreflecting applications, please use our uncoated Dove prisms. The angled faces and longest face of this Dove prism are optically polished surfaces. All other surfaces are fine ground to permit handling of the prism.
