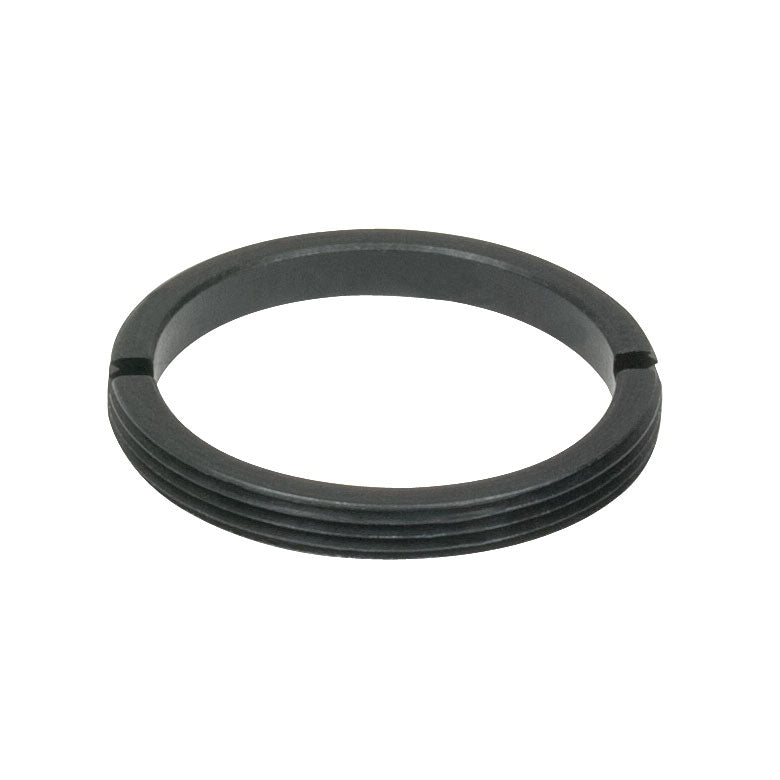

T-SM16RR - M16.5 x 0.5 Retaining Ring for Ø16 mm Lens Mounts

Fosco Connect Part No.: T-SM17RR

  • $ 18.00 or



T-SM16RR - M16.5 x 0.5 Retaining Ring for Ø16 mm Lens Mounts

Product Drawing

  • Standard Retaining Rings for Optics Ranging from Ø13 mm to Ø1"
  • Retaining Rings with RMS (0.800"-36) and C-Mount (1.00"-32) Threads Available
  • Compatible Spanner Wrench T-SPW801
  • Clear Aperture Ø0.57" (Ø14.5 mm)
M17.5 x 0.5 Threading
Internal Thread External Thread
Min Major Diameter 17.500 mm Max Major Diameter 17.479 mm
Min Pitch Diameter 17.175 mm Min Major Diameter 17.371 mm
Max Pitch Diameter 17.295 mm Max Pitch Diameter 17.155 mm
Min Minor Diameter
(and 83.3% of Thread)
16.959 mm Min Pitch Diameter 17.064 mm
Max Minor Diameter
(and 64.9% of Thread)
17.094 mm Max Minor Diameter 16.938 mm
