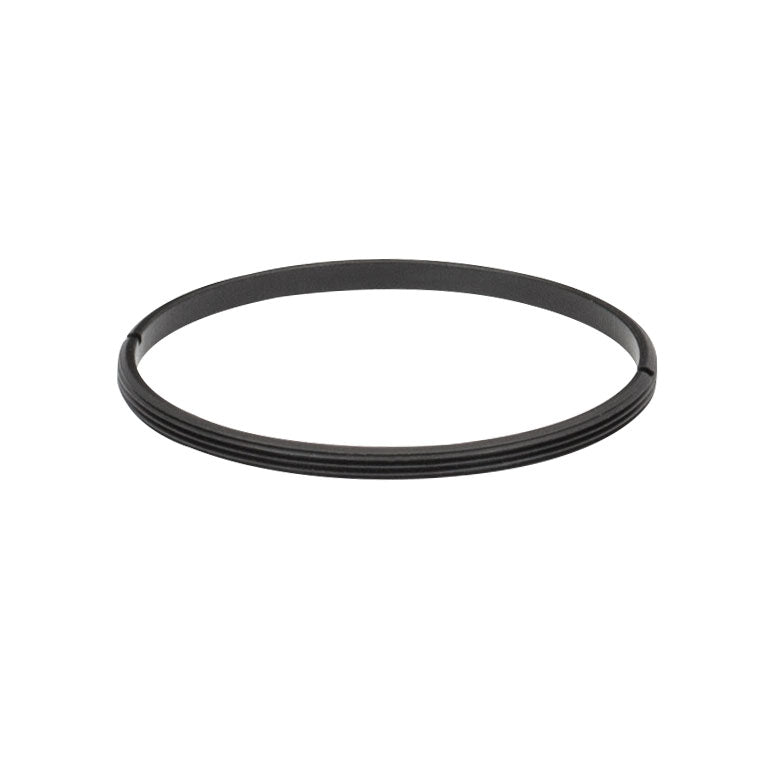

T-SM36RR - M36.5 x 0.5 Retaining Ring
T-SM36RR - M36.5 x 0.5 Retaining Ring
- Standard Retaining Rings for Optics Ranging from Ø30 mm to Ø1.5"
- Thread M36.5 x 0.5
-
Thickness 0.08" (2.0 mm)
- Compatible Spanner Wrench T-SPW801
- Clear Aperture Ø1.34" (Ø34.0 mm)
| T-M36.5 x 0.5 Threading | |||
|---|---|---|---|
| Internal Thread | External Thread | ||
| Min Major Diameter | 36.500 mm | Max Major Diameter | 36.480 mm |
| Min Pitch Diameter | 36.175 mm | Min Major Diameter | 36.371 mm |
| Max Pitch Diameter | 36.304 mm | Max Pitch Diameter | 36.155 mm |
| Min Minor Diameter (and 83.3% of Thread) |
35.959 mm | Min Pitch Diameter | 36.057 mm |
| Max Minor Diameter (and 64.9% of Thread) |
36.094 mm | Max Minor Diameter | 35.938 mm |
