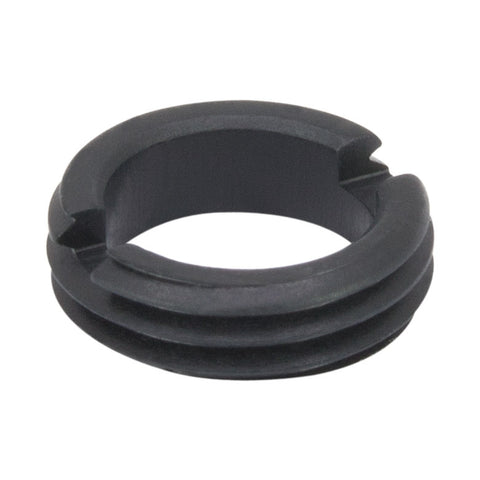

T-SM5RR - M5.5 x 0.5 Retaining Ring for Ø5 mm Lens Mounts
T-SM5RR - M5.5 x 0.5 Retaining Ring for Ø5 mm Lens Mounts
Thread M5.5 x 0.5
Thickness 0.07" (1.7 mm)
| Internal Thread | External Thread | ||
| Min Major Diameter | 5.500 mm | Max Major Diameter | 5.480 mm |
| Min Pitch Diameter | 5.175 mm | Min Major Diameter | 5.374 mm |
| Max Pitch Diameter | 5.275 mm | Max Pitch Diameter | 5.155 mm |
| Min Minor Diameter (and 83.3% of Thread) |
4.959 mm | Min Pitch Diameter | 5.080 mm |
| Max Minor Diameter (and 64.9% of Thread) |
5.099 mm | Max Minor Diameter | 4.939 mm |
Clear Aperture Ø0.15" (Ø3.8 mm)
