Part No.: T-TGC100A

$ 228.00

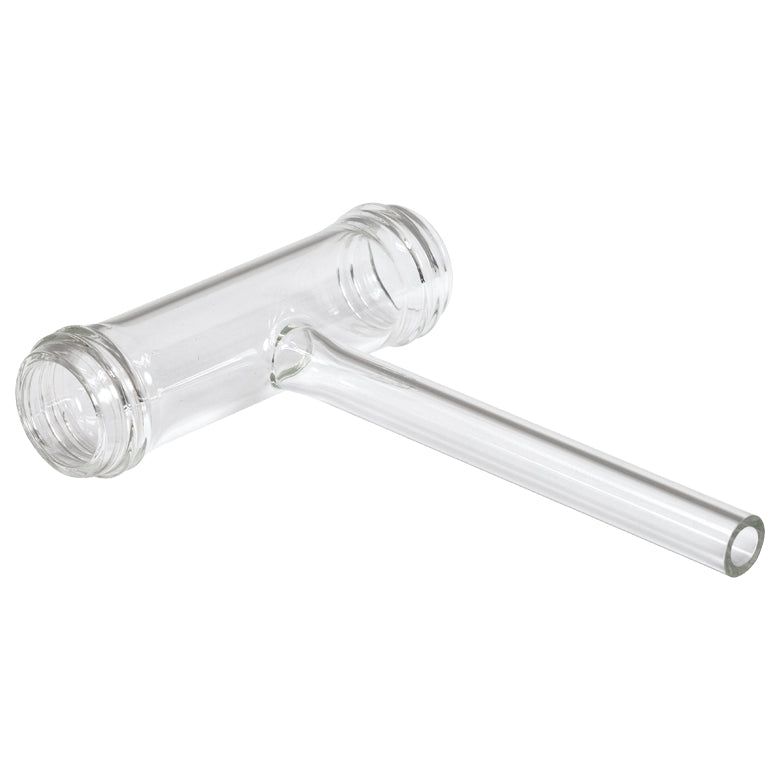

T-TGC100A - Empty Glass Cell with Threaded Ends, 100 mm Long, One Fill Tube

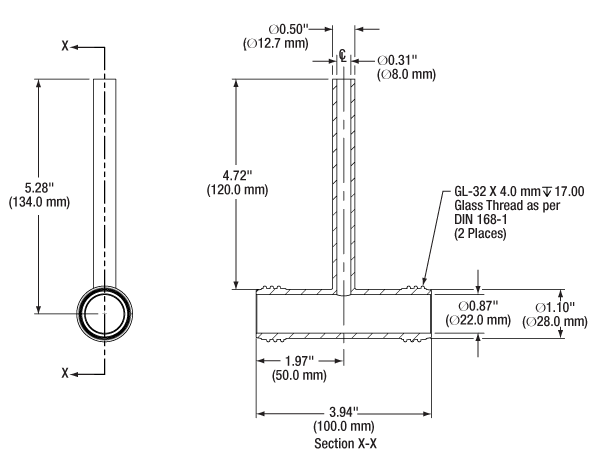

Product Drawing

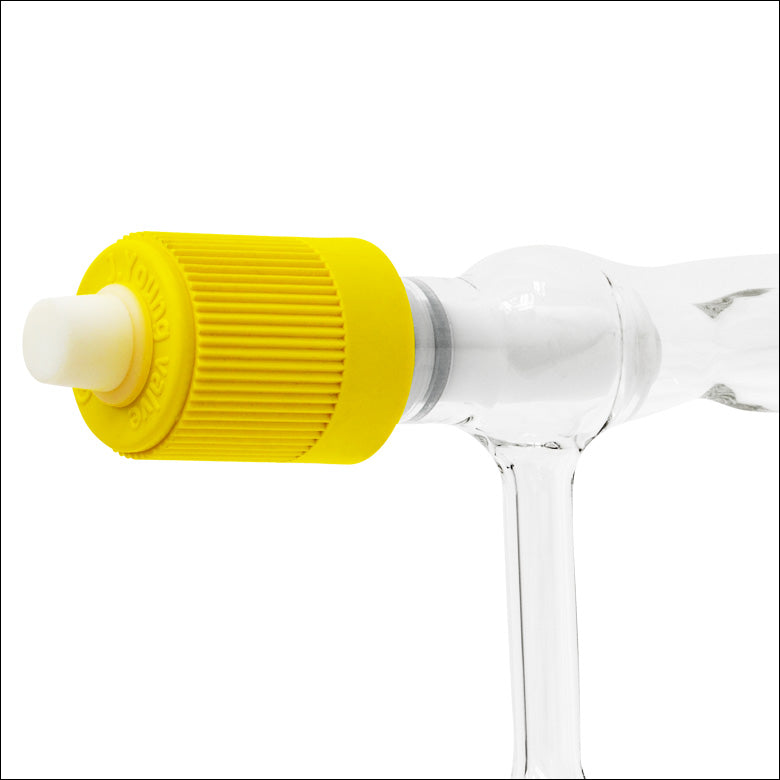

Single Fill Tube Available with or without J. Young^® Valve
100 mm Long Empty Borosilicate Cells
Ø28 mm Body with External GL-32 Threading on Each End
Ideal for Sample Isolation

Specifications
Item #	T-TGC100A
Fill Tubes	One
Valve Type	N/A
Cell Length	100.0 ± 3 mm
Cell Diameter	Ø28.0 ± 0.5 mm
Pressure @ 25 °C	<10^-7 Torr to 5 psi
Fill Tube Outer Diameter	0.50" (12.7 mm)
Cell Substrate	Uncoated Borosilicate
