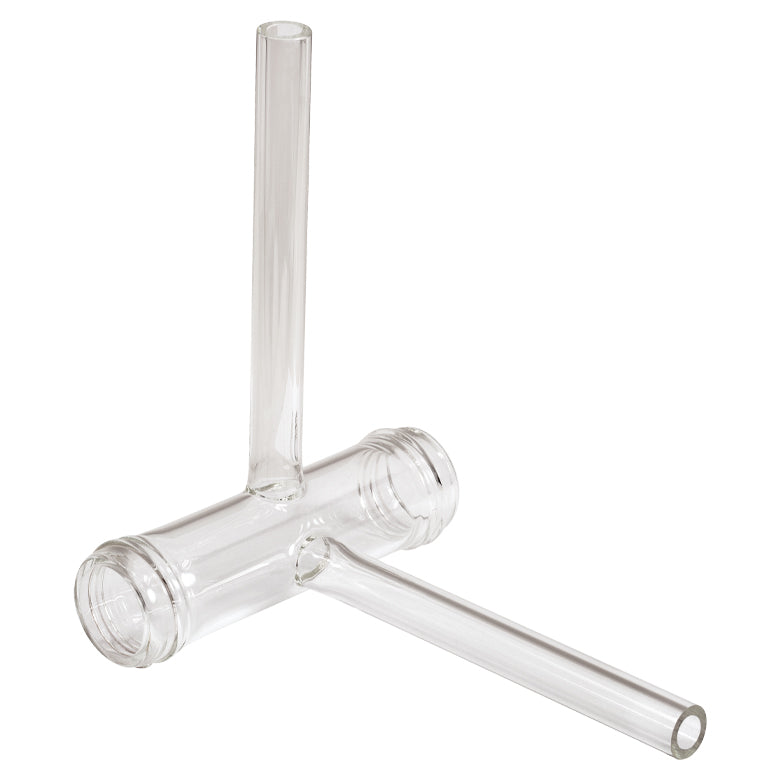

T-TGC100B - Empty Glass Cell with Threaded Ends, 100 mm Long, Two Perpendicular Fill Tubes
T-TGC100B - Empty Glass Cell with Threaded Ends, 100 mm Long, Two Perpendicular Fill Tubes
Roll over image to zoom in Click on image to zoom
T-TGC100B - Empty Glass Cell with Threaded Ends, 100 mm Long, Two Perpendicular Fill TubesT-TGC100B - Empty Glass Cell with Threaded Ends, 100 mm Long, Two Perpendicular Fill Tubes

T-TGC100B - Empty Glass Cell with Threaded Ends, 100 mm Long, Two Perpendicular Fill Tubes

Fosco ConnectSKU: T-TGC100B
Price:
$ 280.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-TGC100B - Empty Glass Cell with Threaded Ends, 100 mm Long, Two Perpendicular Fill Tubes

  • Two Fill Tubes at 90°
  • 100 mm Long Empty Borosilicate Cells
  • Ø28 mm Body with External GL-32 Threading on Each End
  • Ideal for Sample Flow Through

Glass cells with two fill tubes enable gas samples to flow through the cells while under analysis. These cells do not come with integrated valves and can only isolate a sample by adding valves at other points in the system.

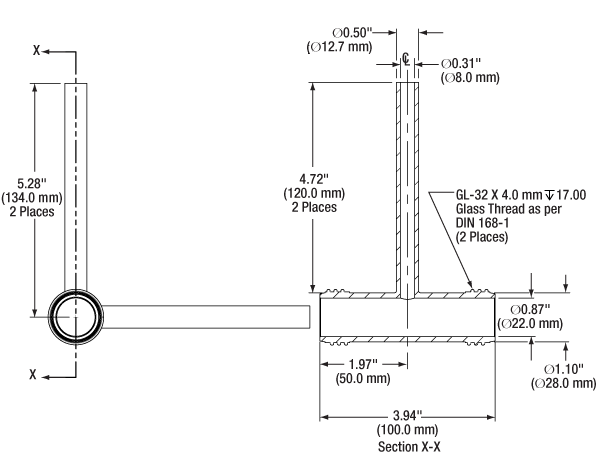

Product Drawing

Specifications
Item # T-TGC100B
Fill Tubes Two at 90°
Valve Type N/A
Cell Length 100.0 ± 3 mm
Cell Diameter Ø28.0 ± 0.5 mm
Pressure @ 25 °C <10-7 Torr to 5 psi
Fill Tube Outer Diameter 0.50" (12.7 mm)
Cell Substrate Uncoated Borosilicate
