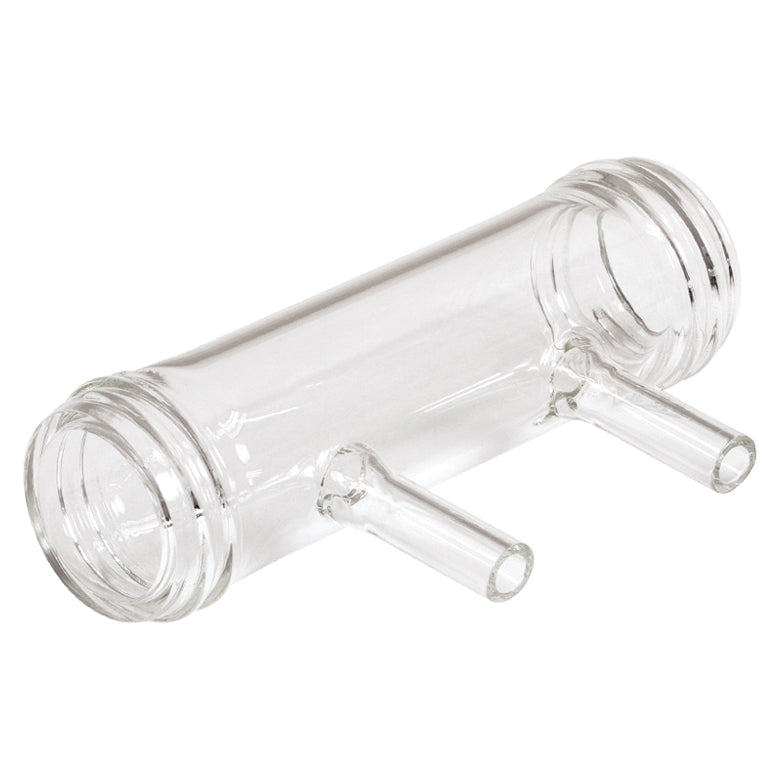

T-TGC100C - Empty Glass Cell with Threaded Ends, 100 mm Long, Two Parallel Fill Tubes
T-TGC100C - Empty Glass Cell with Threaded Ends, 100 mm Long, Two Parallel Fill Tubes
- Two Parallel Fill Tubes
- 100 mm or 500 mm Long Empty Borosilicate Cells
- Ø28 mm Body with External GL-32 Threading on Each End
- 100 mm Cells Available with Glass Stopcocks
| Specifications | |
|---|---|
| Item # | T-TGC100C |
| Fill Tubes | Two at 0° |
| Valve Type | N/A |
| Cell Length | 100.0 ± 3 mm |
| Cell Diameter | Ø28.0 ± 0.5 mm |
| Pressure @ 25 °C | <10-7 Torr to 5 psi |
| Fill Tube Outer Diameter | 0.31" (8.0 mm) |
| Cell Substrate | Uncoated Borosilicate |
