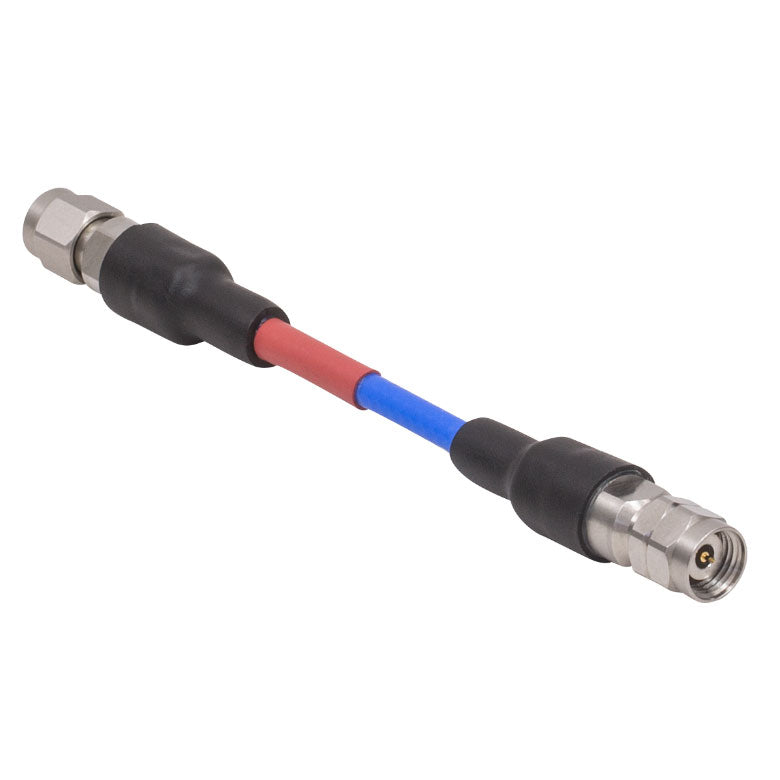

T-TMKM4 - Microwave Adapter Cable, 2.4 mm Male to 2.92 mm Male, 4" (102 mm)
T-TMKM4 - Microwave Adapter Cable, 2.4 mm Male to 2.92 mm Male, 4" (102 mm)
- 2.4 mm-to-2.92 mm Adapter Cables
- DC - 40 GHz
- Available with 2.4 mm Male or Female Connector to 2.92 mm Male or Female Connector
These adapter cables go from either a female or 2.4 mm male connector to either a 2.92 mm male or female connector. Each cable has a low VSWR from DC to 40 GHz as well as a low insertion loss.
The 2.4 mm connector can mate directly to a 1.85 mm or V connector, while the 2.92 mm connector can mate directly to an SMA, 3.5 mm, or K connector.
| Specificationsa | ||||
|---|---|---|---|---|
| Item # | T-TMKM4 | T-TMKF4 | T-TFKM4 | T-TFKF4 |
| Length | 4" | |||
| Adapter Style (Click for Image) |
2.4 mm Male to 2.92 mm Male |
2.4 mm Male to 2.92 mm Female |
2.4 mm Female to 2.92 mm Male |
2.4 mm Female to 2.92 mm Female |
| Frequency Range | DC - 40 GHz | |||
