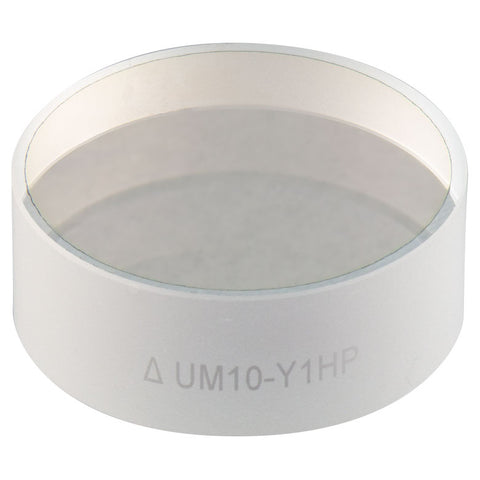

T-UM10-Y1HP - Ø1" Picosecond Yb Laser Line Mirror, Fundamental, 1010 - 1080 nm

Fosco Connect Part No.: T-UM10-Y1HP

  • $ 268.00 or



T-UM10-Y1HP - Ø1" Picosecond Yb Laser Line Mirror, Fundamental, 1010 - 1080 nm

Product Drawing

  • Four Dielectric Coatings for Yb Lasers Available:
    • Fundamental: 1010 - 1080 nm
    • 2nd Harmonic: 500 - 550 nm
    • 3rd Harmonic: 335 - 375 nm
    • 4th Harmonic: 250 - 272 nm
  • High Damage Threshold (See the Damage Thresholds Tab)
  • Designed For Use at 45° Angle of Incidence
  • High Reflectance for Both S and P Polarization
  • Ideal for Micromachining and Laser Material Processing Applications
Item # Wavelength Range Reflectance Damage Threshold
T-UM10-Y1HP 1010 - 1080 nm
Fundamental
Rabs > 99.5% (S- and P-Pol.) 0.524 J/cm2 (1030 nm, 0.500 ps FWHM, P-Pol, 10 000 Pulses)



Damage Threshold Specifications
Item # Damage Threshold
T-UM10-Y1HP 0.524 J/cm2 (1030 nm, 0.500 ps FWHM, P-Pol, 10 000 Pulses)



Mirror Specifications
Diameter Ø1"
Diameter Tolerance +0.00 / -0.10 mm
Thickness 9.5 mm
Thickness Tolerance ±0.20 mm
Clear Aperture >80% Diameter
Angle of Incidence (AOI) 45°
Substrate Fused Silica
Front Surface Flatness <λ/10 at 632.8 nm
Front Surface Quality 15-5 Scratch-Dig
Parallelism ≤5 arcmin
Back Surface Polished
