T-W40530T1 - Ø1/2" Textured Broadband Antireflective Window, UVFS, AR Range: 400 - 1100 nm, t = 3.0 mm

Fosco Connect Part No.: T-W40530T1

  • $ 355.00 or



T-W40530T1 - Ø1/2" Textured Broadband Antireflective Window, UVFS, AR Range: 400 - 1100 nm, t = 3.0 mm

Damage Threshold Specifications
Item # Suffix Damage Threshold
T1 >30 J/cm2 at 532 nm, 10 ns, 10 Hz, Ø0.4 mm



Coating or Surface
Designation
(Item # Suffix)
Wavelength
Range
Reflectance
(Average)

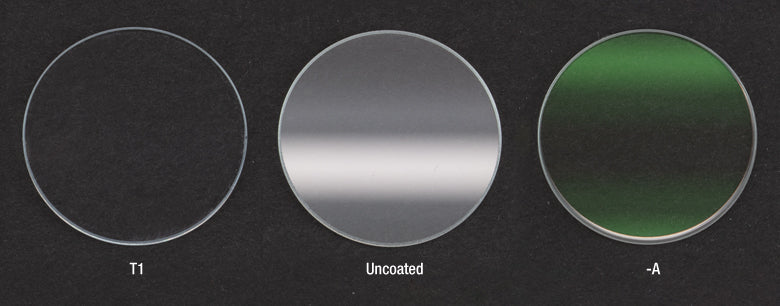

-A 350 - 700 nm <0.5%
T1 400 - 1100 nm <0.25%
-AB 400 - 1100 nm <1.0%
-B 650 - 1050 nm <0.5%



Product Drawing

  • Ø1/2" and Ø1" Versions Available
  • <0.25% Average Reflectance Per Surface
  • ≥98% Absolute Transmission from 400 to 1100 nm
  • Ideal for UV through NIR Applications Requiring Long-Term Beam Stability
  • High Resistance to Laser-Induced Damage
Item # T-W40530T1
Wavelength Range 400 - 1100 nm
Diameter Ø1/2" (Ø12.7 mm)
Diameter Tolerance +0.0 / -0.2 mm
Thickness 3.0 mm
Thickness Tolerance ±0.3 mm
Clear Aperture ≥Ø10.16 mm
Parallelism <3 arcmin
Surface Quality 10-5 Scratch-Dig
Transmitted Wavefont Error <λ/10 at 633 nm
Material UV Fused Silica
Damage Threshold >30 J/cm2 at 532 nm, 10 ns, 10 Hz, Ø0.4 mm
Reflectance Over
Wavelength Rangeb
Ravg < 0.25%
Transmission Over
Wavelength Rangec
Tabs ≥ 98%
Transmission Data
(Click for Graph)

Raw Data
