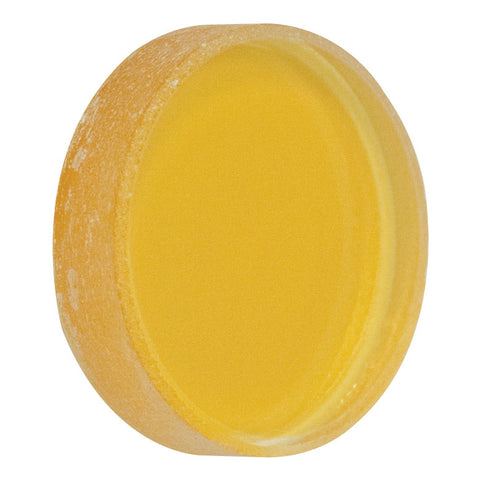

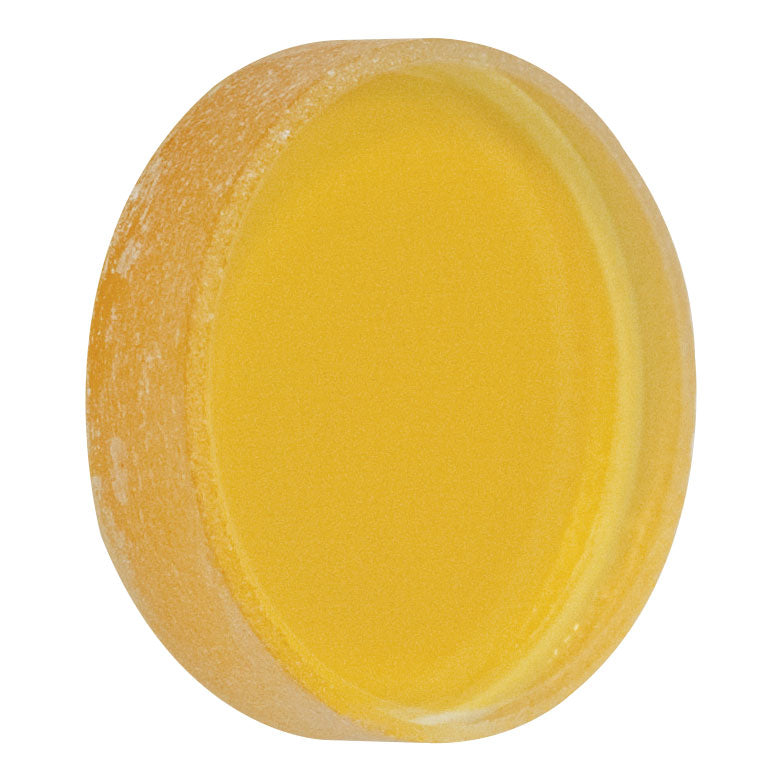

T-WG00530-E - Ø1/2" BaF2 Broadband Precision Window, AR Coated: 2-5 µm
T-WG00530-E - Ø1/2" BaF2 Broadband Precision Window, AR Coated: 2-5 µm
- Ø1/2" and Ø1" Versions Available
- AR Coating on Both Sides
- 200 nm - 11 µm Wavelength Range
-
- 2 - 5 µm AR Coating Range
| Damage Threshold Specifications | |
|---|---|
| Coating Designation (Item # Suffix) |
Damage Threshold |
| -E | 2.0 J/cm2 (3.3 µm, 6 ns, 30 kHz, Ø0.0483 mm) |
| Item # | T-WG00530-E |
|---|---|
| Diameter | 1/2" (12.7 mm) |
| Diameter Tolerance | +0.0 / -0.2 mm |
| Thickness | 3.0 mm |
| Thickness Tolerance | ±0.3 mm |
| Clear Aperture | >90% Diameter |
| Parallelism | <1 arcmin |
| Surface Flatness | λ/4 over Clear Aperture |
| Surface Quality | 40-20 Scratch-Dig |
| AR Coating Range | 2 - 5 µm (-E Coating) |
| Reflectance over AR Coating Range | Ravg < 1.25% |

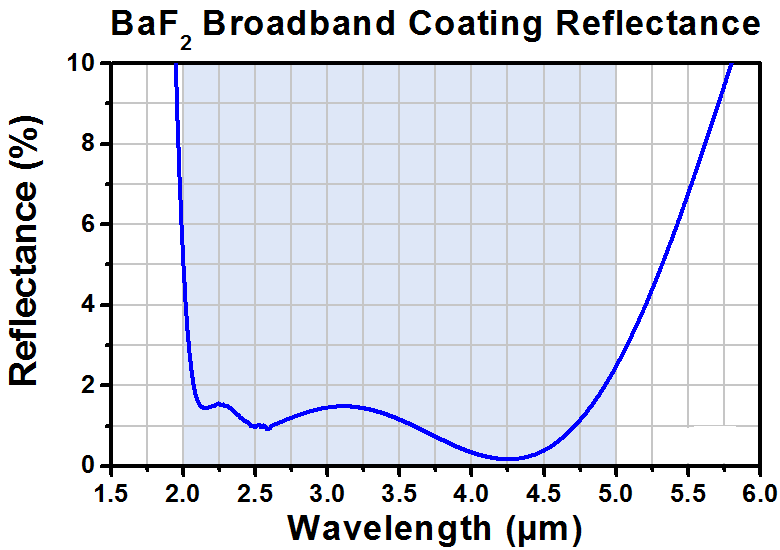

| Reflectance Data |
Raw Data |
| Transmission Data |
Raw Data |
| Damage Threshold | 2.0 J/cm2 (3.3 μm, 6 ns, 30 kHz, Ø0.0483 mm) |
