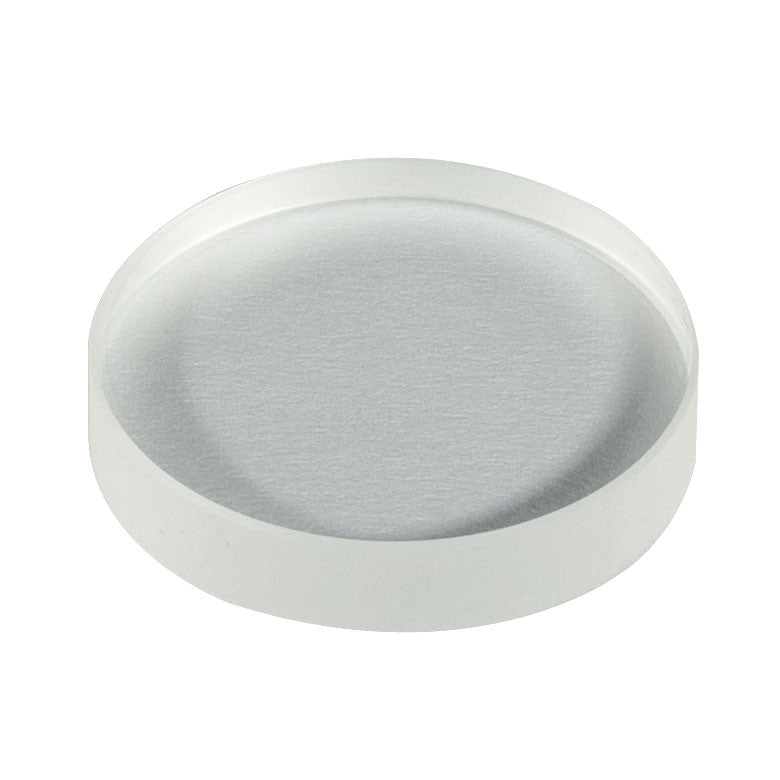

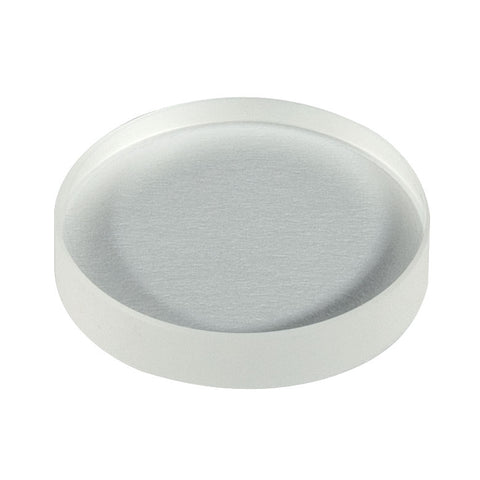

T-WG10530-A - Ø1/2" N-BK7 Broadband Precision Window, AR Coated: 350 - 700 nm, t = 3 mm
T-WG10530-A - Ø1/2" N-BK7 Broadband Precision Window, AR Coated: 350 - 700 nm, t = 3 mm
| Item # | T-WG10530-A |
|---|---|
| Size | Ø1/2" (12.7 mm) |
| Size Tolerance | +0.0 / -0.2 mm |
| Thickness | 3.0 mm |
| Thickness Tolerance | ±0.3 mm |
| Clear Aperture | ≥Ø11.43 mm |
| Parallelism | ≤5 arcsec |
| Surface Flatness | ≤λ/10 over CA |
| Transmitted Wavefront Error | - |
| Surface Quality | 20-10 Scratch-Dig |
| AR Coating Range | 350 - 700 nm (-A Coating) |
| Reflectance over AR Coating Range | Ravg < 0.5% |

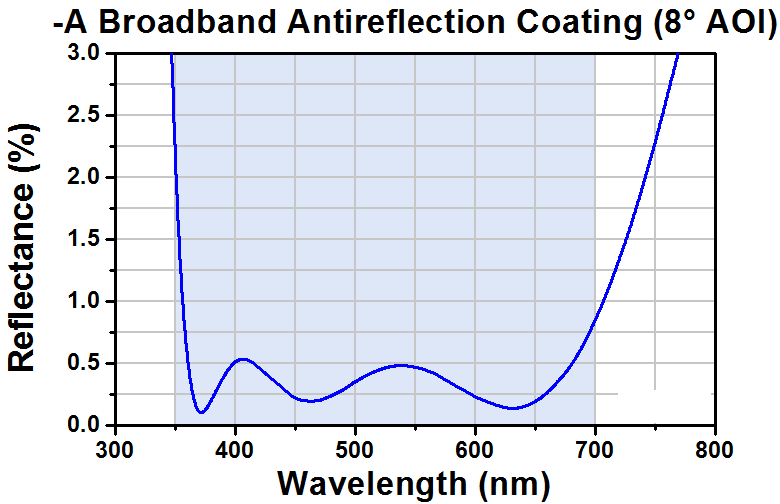

| Reflectance Data |
Raw Data |

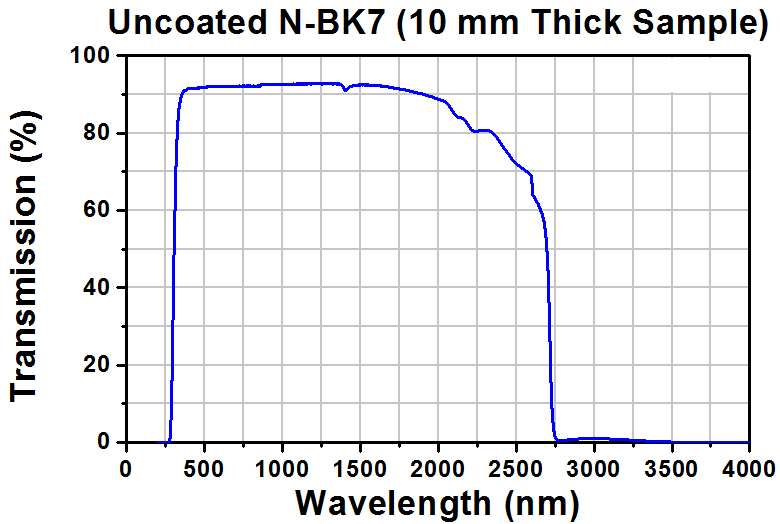

| Substrate | N-BK7 |
| Damage Threshold | 7.5 J/cm2 at 532 nm, 10 ns, 10 Hz, Ø0.504 mm |
