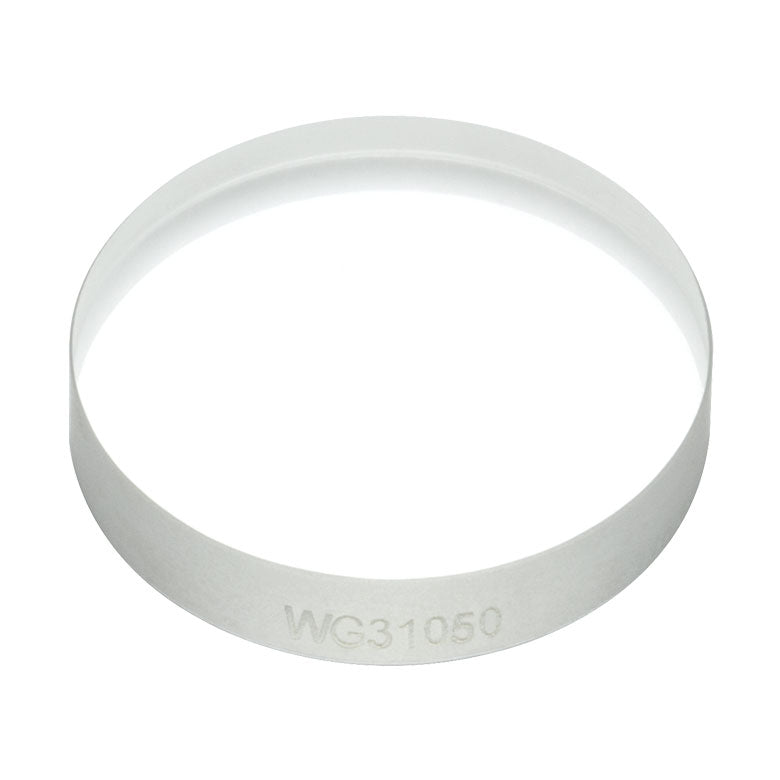

T-WG31050 - Ø1" Sapphire Broadband Precision Window, Uncoated
T-WG31050 - Ø1" Sapphire Broadband Precision Window, Uncoated
| Item # | T-WG30530 | T-WG31050 |
|---|---|---|
| Diameter | 1/2" (12.7 mm) | 1" (25.4 mm) |
| Diameter Tolerance | +0.0 / -0.2 mm | |
| Thickness | 3.0 mm | 5.0 mm |
| Thickness Tolerance | ±0.3 mm | |
| Clear Aperture | ≥Ø11.43 mm | ≥Ø22.86 mm |
| Parallelism | ≤3 arcmin | |
| Transmitted Wavefront Error | <λ/4 Over Central Ø5 mm ≤λ/2 Over Full Clear Aperture |
- |
| Surface Flatness | λ Over Clear Aperture | |
| Surface Quality | 60-40 Scratch-Dig | |
| Wavelength Range | 200 nm - 4.5 μm (Uncoated) | |
| Substrate | Sapphire | |

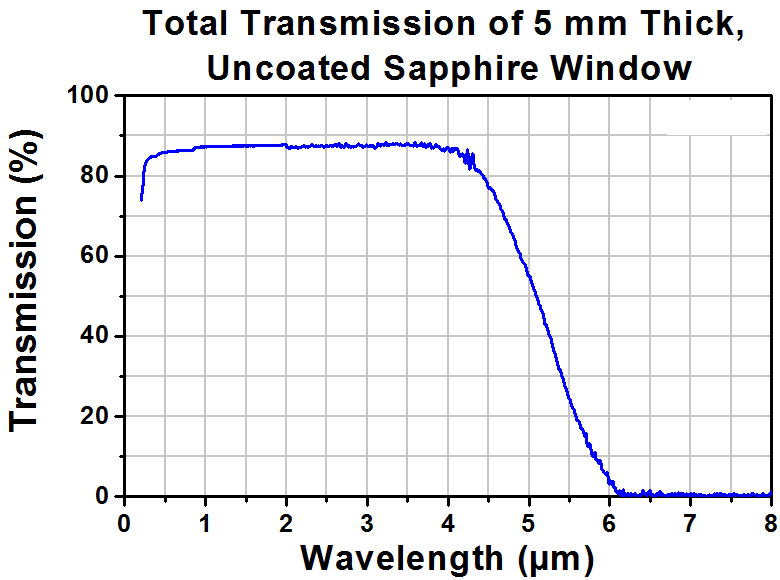

| Transmission Data |
Raw Data |
|
