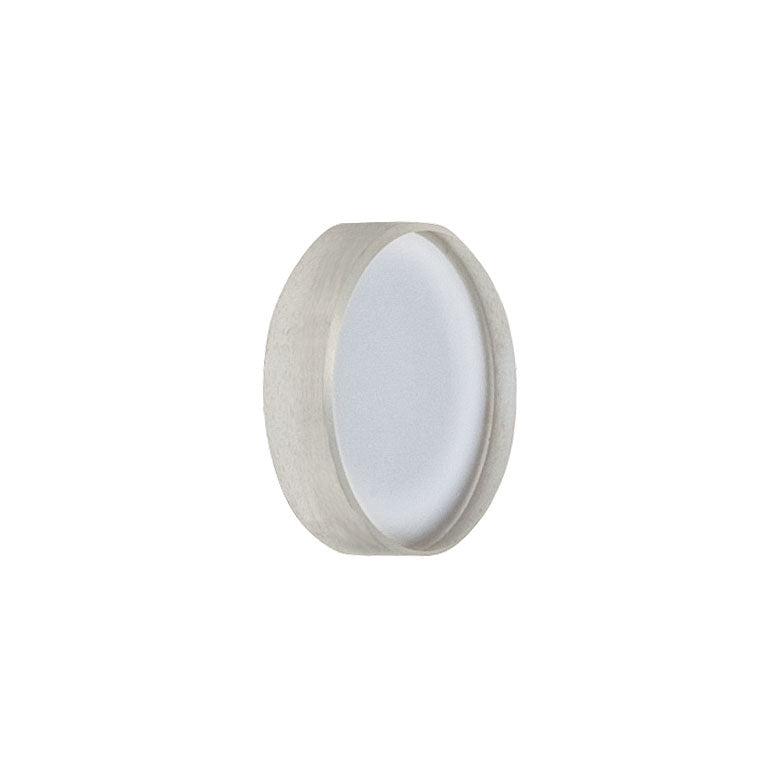

T-WG40530-UV - Ø1/2" UVFS Broadband Precision Window, AR Coated: 245 - 400 nm, t = 3 mm

Fosco Connect Part No.: T-WG40530-UV

  • $ 178.00 or



T-WG40530-UV - Ø1/2" UVFS Broadband Precision Window, AR Coated: 245 - 400 nm, t = 3 mm

Product Drawing

  • Five Sizes Available
    • Ø1/2": 3.0 mm Thick
    • Ø1": 1.0 mm or 5.0 mm Thick
    • 25 mm x 36 mm: 1.0 mm Thick
    • Ø1.5": 4.04 mm Thick
    • Ø2": 12.0 mm Thick
  • Available Uncoated or with One of Four Broadband AR Coatings
    • 245 - 400 nm (-UV Coating Designation)
    • 350 - 700 nm (-A Coating Designation)
    • 650 - 1050 nm (-B Coating Designation)
    • 1050 - 1700 nm (-C Coating Designation)
Item # T-WG40530-UV
Size Ø1/2"
(12.7 mm)
Size Tolerance +0.0 / -0.2 mm
Thickness 3.0 mm
Thickness Tolerance ±0.3 mm
Clear Aperture >Ø11.4 mm
Parallelism <5 arcsec
Surface Flatness ≤λ/10 over
Clear Aperture
Transmitted Wavefront Error -
Surface Quality 20-10 Scratch-Dig
AR Coating Range 245 - 400 nm
(-UV Coating)
Reflectance over
AR Coating Range
Ravg < 0.5%
Substrate UV Fused Silica
Damage Threshold 5.0 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.350 mm)
