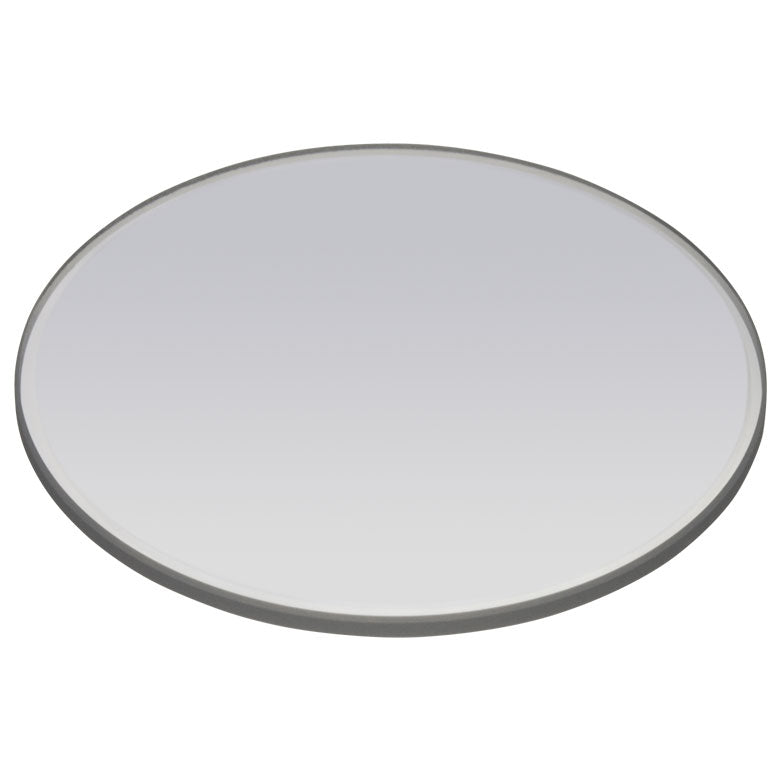

T-WG41010-UV - Ø1" UVFS Broadband Precision Window, AR Coated: 245 - 400 nm, t = 1 mm
T-WG41010-UV - Ø1" UVFS Broadband Precision Window, AR Coated: 245 - 400 nm, t = 1 mm
- Five Sizes Available
-
- Ø1/2": 3.0 mm Thick
- Ø1": 1.0 mm or 5.0 mm Thick
- 25 mm x 36 mm: 1.0 mm Thick
- Ø1.5": 4.04 mm Thick
- Ø2": 12.0 mm Thick
- Available Uncoated or with One of Four Broadband AR Coatings
-
- 245 - 400 nm (-UV Coating Designation)
- 350 - 700 nm (-A Coating Designation)
- 650 - 1050 nm (-B Coating Designation)
- 1050 - 1700 nm (-C Coating Designation)
| Item # | WG41010-UV |
|---|---|
| Size | Ø1" (25.4 mm) |
| Size Tolerance | +0.0 / -0.2 mm |
| Thickness | 1.0 mm |
| Thickness Tolerance | ±0.1 mm |
| Clear Aperture | >Ø22.9 mm |
| Parallelism | <1 arcmin |
| Surface Flatness | - |
| Transmitted Wavefront Error | λ/4 |
| Surface Quality | 20-10 Scratch-Dig |

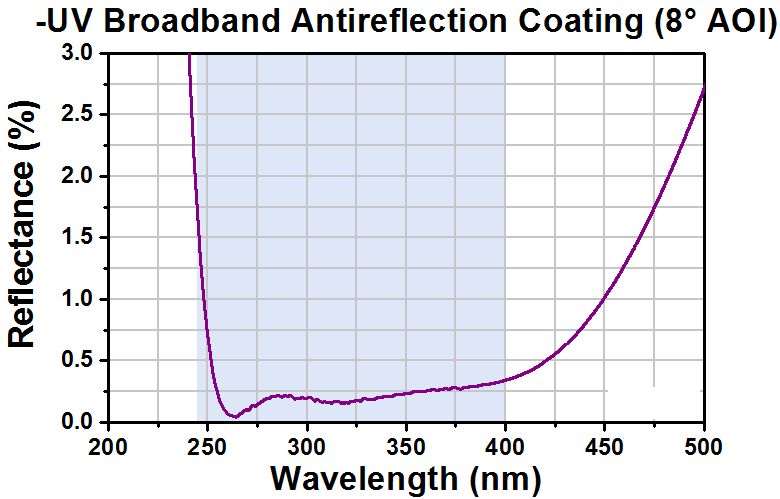

| AR Coating Range | 245 - 400 nm (-UV Coating) |
| Reflectance over AR Coating Range |
Ravg < 0.5% |
| Substrate | UV Fused Silica |
| Damage Threshold | 5.0 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.350 mm) |
