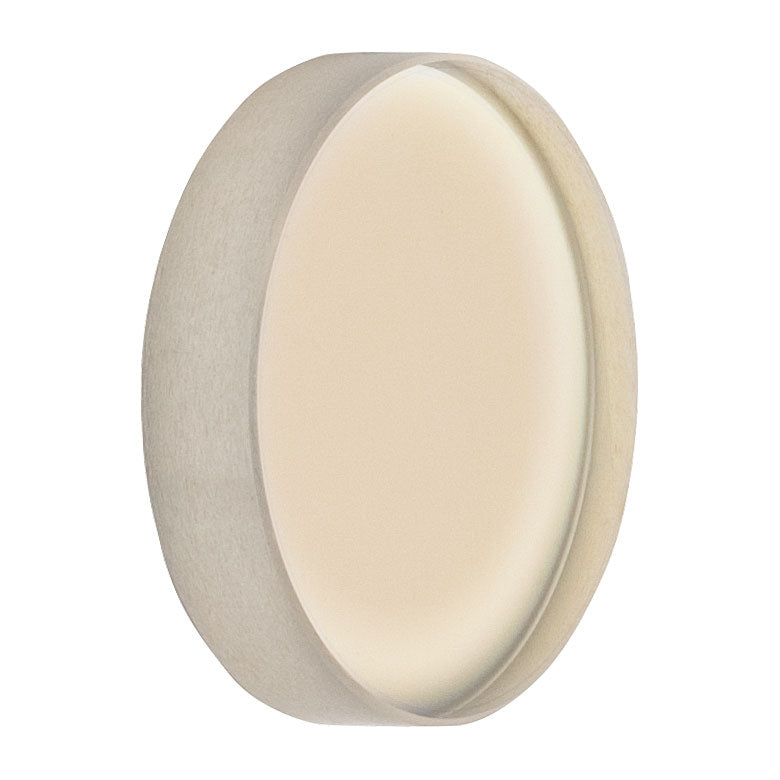

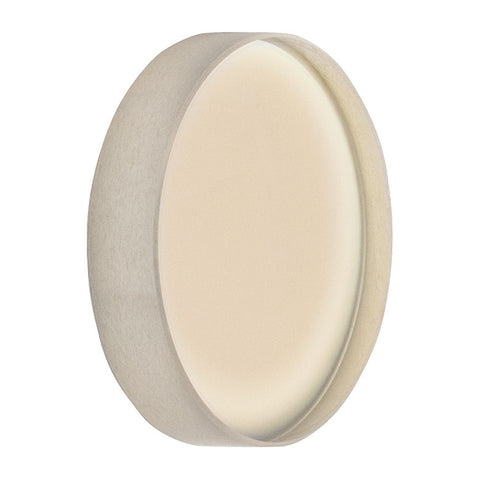

T-WG41050-B - Ø1" UVFS Broadband Precision Window, AR Coated: 650 - 1050 nm, t = 5 mm
T-WG41050-B - Ø1" UVFS Broadband Precision Window, AR Coated: 650 - 1050 nm, t = 5 mm
Roll over image to zoom in Click on image to zoom
T-WG41050-B - Ø1" UVFS Broadband Precision Window, AR Coated: 650 - 1050 nm, t = 5 mmT-WG41050-B - Ø1" UVFS Broadband Precision Window, AR Coated: 650 - 1050 nm, t = 5 mm

T-WG41050-B - Ø1" UVFS Broadband Precision Window, AR Coated: 650 - 1050 nm, t = 5 mm

Fosco ConnectSKU: T-WG41050-B
Price:
$ 185.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-WG41050-B - Ø1" UVFS Broadband Precision Window, AR Coated: 650 - 1050 nm, t = 5 mm

Product Drawing

  • Five Sizes Available
    • Ø1/2": 3.0 mm Thick
    • Ø1": 1.0 mm or 5.0 mm Thick
    • 25 mm x 36 mm: 1.0 mm Thick
    • Ø1.5": 4.04 mm Thick
    • Ø2": 12.0 mm Thick
  • Available Uncoated or with One of Four Broadband AR Coatings
    • 245 - 400 nm (-UV Coating Designation)
    • 350 - 700 nm (-A Coating Designation)
    • 650 - 1050 nm (-B Coating Designation)
    • 1050 - 1700 nm (-C Coating Designation)
Item # T-WG41050-B
Size Ø1"
(25.4 mm)
Size Tolerance +0.0 / -0.2 mm
Thickness 5.0 mm
Thickness Tolerance ±0.3 mm
Clear Aperture ≥Ø22.86 mm
Parallelism ≤5 arcsec
Surface Flatnessa λ/10 over
Clear Aperture
Transmitted Wavefront Errora -
Surface Quality 20-10 Scratch-Dig
AR Coating Range 650 - 1050 nm
Reflectance over
AR Coating Rangeb 		Ravg < 0.5%

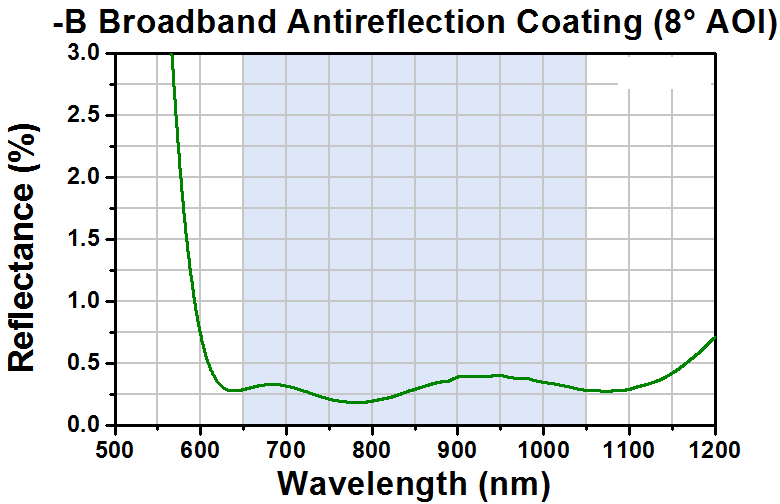

Reflectance Data
(Click for Graph)
Raw Data
Substrate UV Fused Silica
Damage Threshold Pulse 0.246 J/cm2 (800 nm, 99 fs, 1 kHz, Ø0.166 mm)
7.5 J/cm2 (810 nm, 10 ns, 10 Hz, Ø0.133 mm)
CWd,e 20 kW/cm (1070 nm, Ø0.974 mm)
