T-WG41050 - Ø1" UVFS Broadband Precision Window, Uncoated, t = 5 mm
T-WG41050 - Ø1" UVFS Broadband Precision Window, Uncoated, t = 5 mm
- Five Sizes Available
-
- Ø1/2": 3.0 mm Thick
- Ø1": 1.0 mm or 5.0 mm Thick
- 25 mm x 36 mm: 1.0 mm Thick
- Ø1.5": 4.04 mm Thick
- Ø2": 12.0 mm Thick

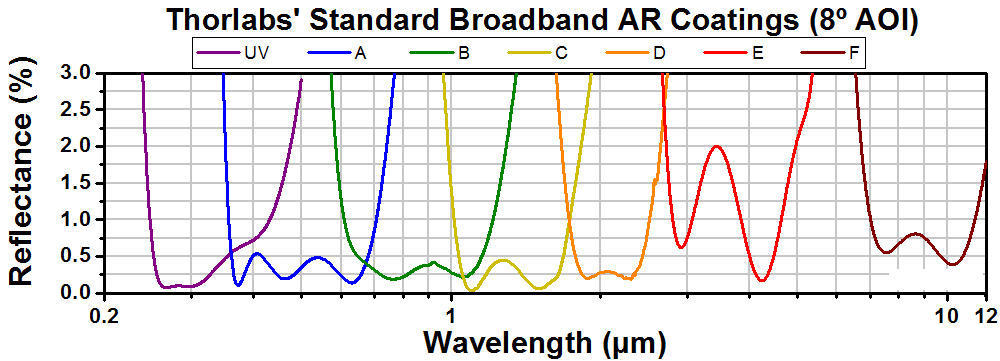

- Available Uncoated or with One of Four Broadband AR Coatings
-
- 245 - 400 nm (-UV Coating Designation)
- 350 - 700 nm (-A Coating Designation)
- 650 - 1050 nm (-B Coating Designation)
- 1050 - 1700 nm (-C Coating Designation)
| Item # | T-WG41050 |
|---|---|
| Size | Ø1" (Ø25.4 mm) |
| Size Tolerance | +0.0 / -0.2 mm |
| Thickness | 5.0 mm |
| Thickness Tolerance | ±0.3 mm |
| Clear Aperture | >Ø22.86 mm |
| Parallelism | ≤5 arcsec |
|
Surface Flatness |
λ/10 over Clear Aperture |
| Transmitted Wavefront Errora | - |
| Surface Quality | 20-10 Scratch-Dig |
| Wavelength Range | 185 nm - 2.1 μm (Uncoated) |
| Substrate | UV Fused Silica |
