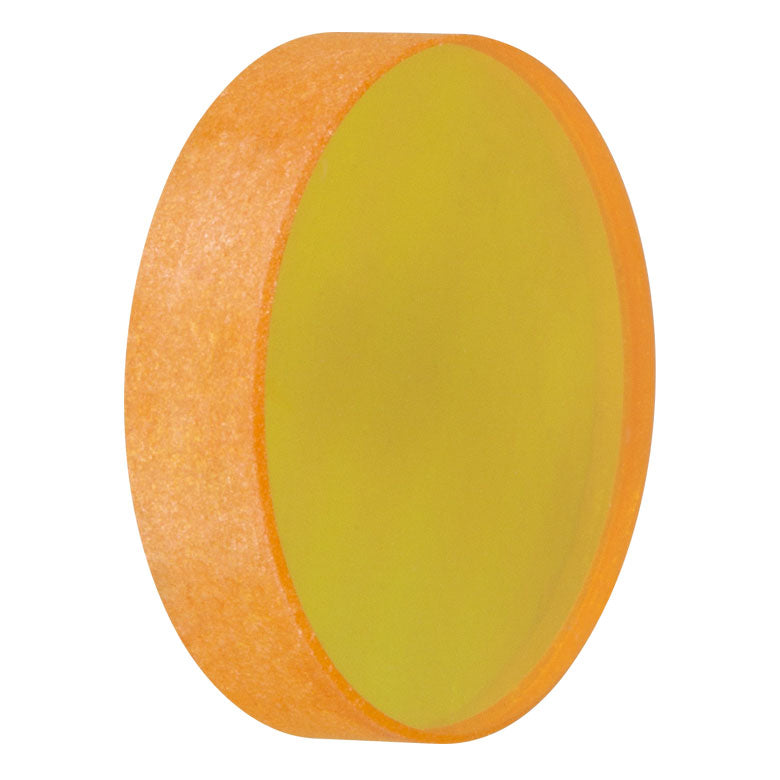

T-WG70530 - Ø1/2" ZnSe Broadband Precision Window, Uncoated
T-WG70530 - Ø1/2" ZnSe Broadband Precision Window, Uncoated
- 1/2" and 1" Diameters Available
- Uncoated Windows for Visible and IR Applications in the 600 nm - 16 µm Spectral Range
- AR-Coated Options Available:
- -D Coating: 1.65 to 3.0 µm
- -E4 Coating: 2.0 to 13.0 µm
- -E2 Coating: 4.5 to 7.5 µm
- -E3 Coating: 7.0 to 12.0 µm
| Item # | T-WG70530 | |
|---|---|---|
| Diameter | 1/2" (12.7 mm) | |
| Diameter Tolerance | +0.0 / -0.2 mm | |
| Thickness | 3.0 mm | |
| Thickness Tolerance | ±0.1 mm | |
| Clear Aperture | >Ø11.4 mm | |
| Parallelism | ≤1 arcmin | |
| Surface Flatness | λ/2 Over Clear Aperture | |
| Surface Quality | 40-20 Scratch-Dig | |
| Wavelength Range | 600 nm - 16 µm (Uncoated) | |
| Substrate | Zinc Selenide | |

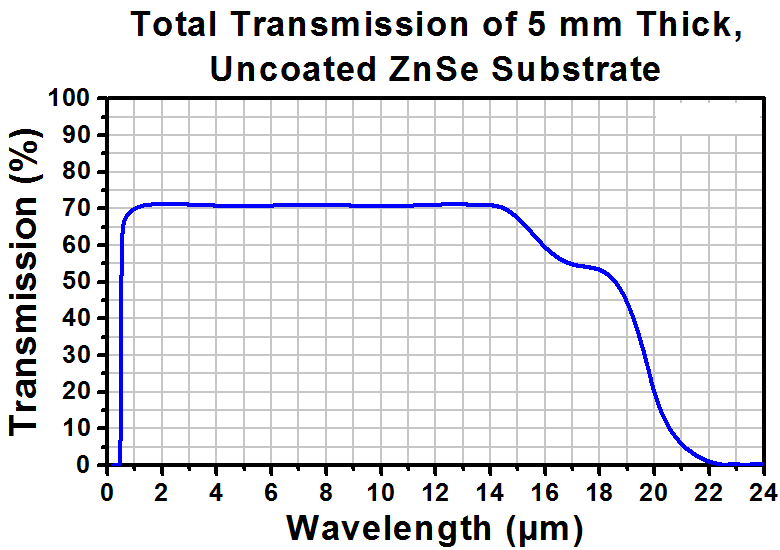

| Transmission Data |
Raw Data |
|
