T-WG70530 - Ø1/2" ZnSe Broadband Precision Window, Uncoated
Product Drawing
- N-BK7 or UV Fused Silica Substrate
- AR Coatings Centered Around Common Lasing Wavelengths
- Ø1" (Ø25.4 mm) Windows, 5.0 mm Thick
- High Damage Thresholds (See Below for Details)
| Damage Threshold Specifications |
| Item # |
Damage Threshold |
| T-WL11050-C7 |
7.5 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.491 mm) |
| Diameter |
1" (25.4 mm) |
| Diameter Tolerance |
+0.0 / -0.2 mm |
| Thickness |
5.0 mm |
| Thickness Tolerance |
±0.3 mm |
| Clear Aperture |
≥22.86 mm |
| Parallelism |
≤5 arcsec |
| Surface Flatnessa |
≤λ/10 |
| Surface Quality |
10-5 Scratch-Dig |

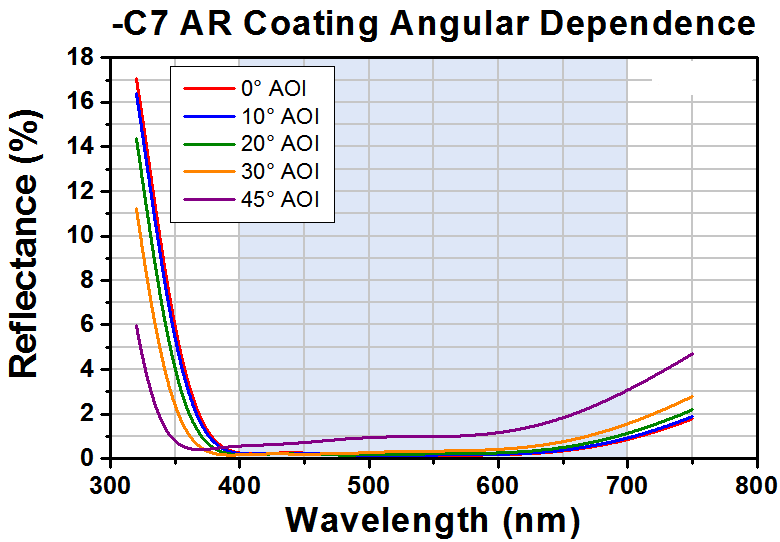

| AR Coating Range |
400 - 700 nm |
| Reflectance over AR Coating Range |
Ravg < 0.5% |
|
Damage Threshold
|
7.5 J/cm2 at 532 nm, 10 ns, 10 Hz, Ø0.491 mm |
