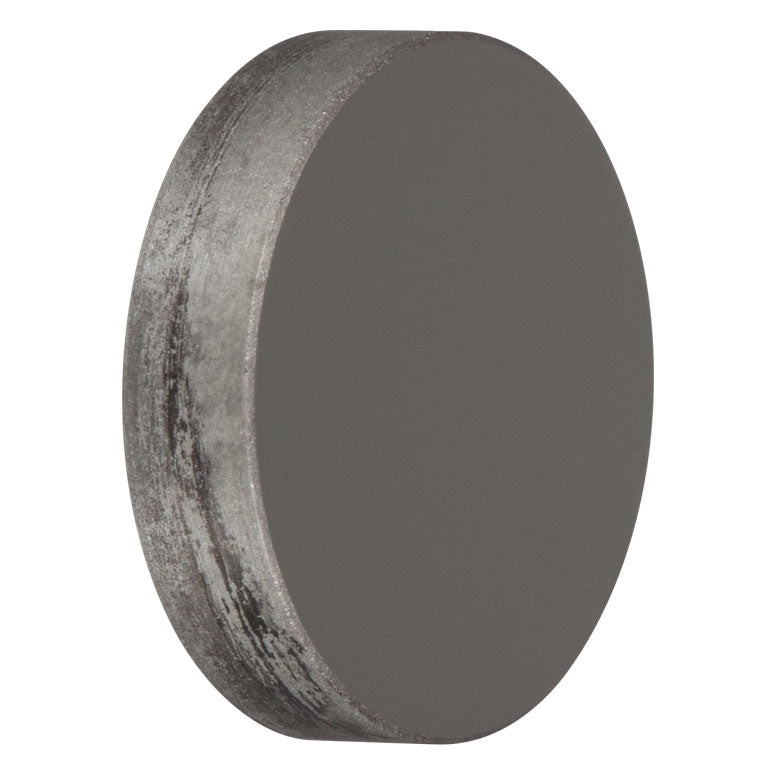

T-WG90530 - Ø1/2" Germanium Broadband Precision Window, Uncoated

Fosco Connect Part No.: T-WG90530

  • $ 178.00 or



T-WG90530 - Ø1/2" Germanium Broadband Precision Window, Uncoated

Product Drawing

Item # T-WG90530 T-WG91050
Diameter  1/2" (12.7 mm) 1" (25.4 mm)
Diameter Tolerance +0.0 / -0.2 mm
Thickness 3.0 mm 5.0 mm
Thickness Tolerance ±0.1 mm
Clear Aperture ≥Ø11.43 mm ≥Ø22.86 mm
Parallelism ≤1 arcmin <1 arcmin
Surface Flatness ≤λ over Clear Aperture
Surface Quality 40-20 Scratch-Dig
Wavelength Range 2.0 - 16 μm (Uncoated)
Substrate Germanium

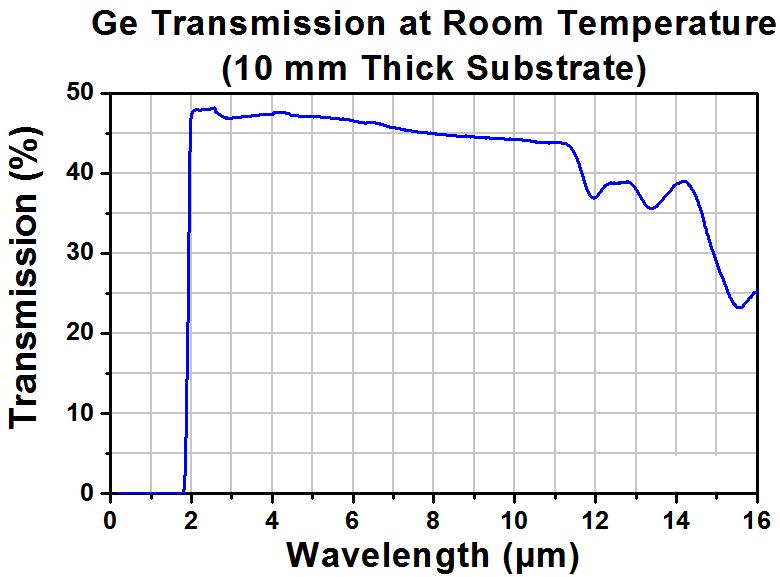

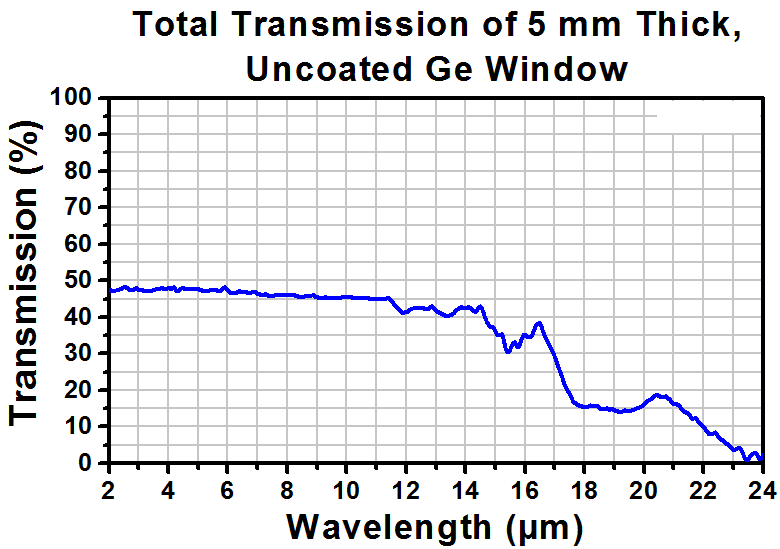

Transmission Data
(Click for Graph)

Raw Data
