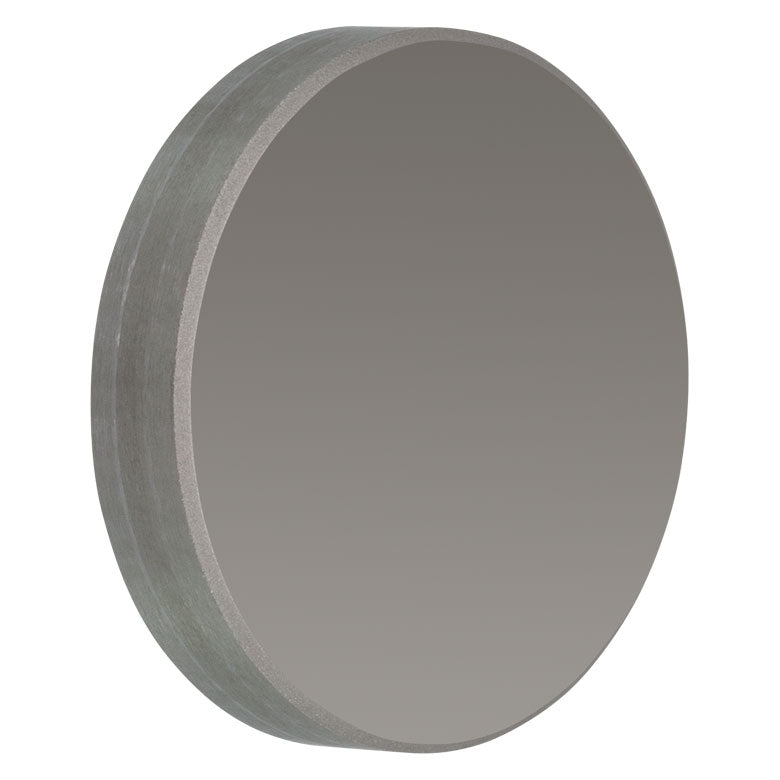

T-WG91050 - Ø1" Germanium Broadband Precision Window, Uncoated
T-WG91050 - Ø1" Germanium Broadband Precision Window, Uncoated
| Item # | T-WG90530 | T-WG91050 |
|---|---|---|
| Diameter | 1/2" (12.7 mm) | 1" (25.4 mm) |
| Diameter Tolerance | +0.0 / -0.2 mm | |
| Thickness | 3.0 mm | 5.0 mm |
| Thickness Tolerance | ±0.1 mm | |
| Clear Aperture | ≥Ø11.43 mm | ≥Ø22.86 mm |
| Parallelism | ≤1 arcmin | <1 arcmin |
| Surface Flatnessa | ≤λ over Clear Aperture | |
| Surface Quality | 40-20 Scratch-Dig | |
| Wavelength Range | 2.0 - 16 μm (Uncoated) | |
| Substrate | Germanium | |
| Transmission Data (Click for Graph) |
Raw Data |
|
