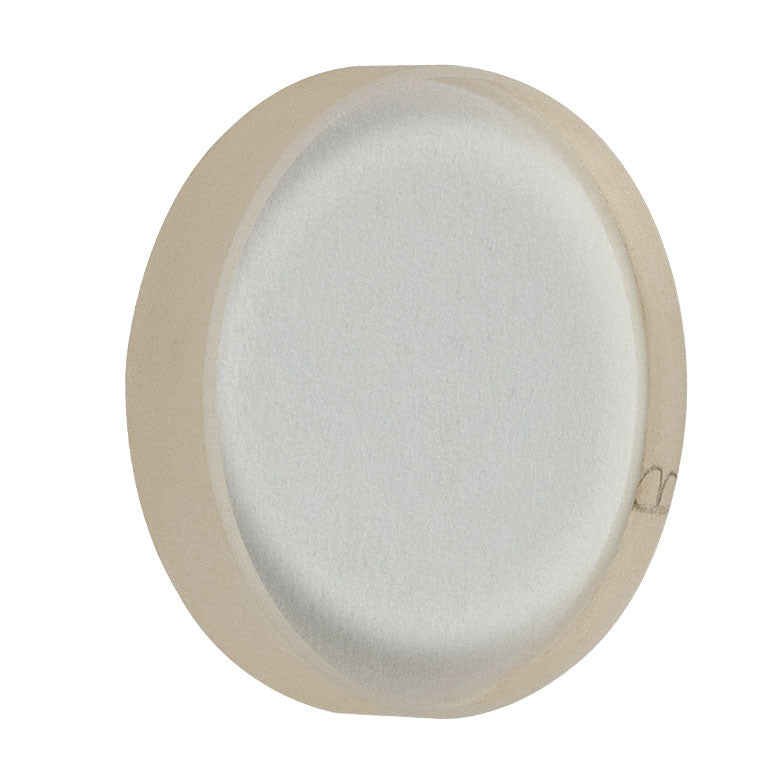

T-WL11050-C10 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 nm
T-WL11050-C10 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 nm
Roll over image to zoom in Click on image to zoom
T-WL11050-C10 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 nmT-WL11050-C10 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 nm

T-WL11050-C10 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 nm

Fosco ConnectSKU: T-WL11050-C10
Price:
$ 215.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-WL11050-C10 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 nm

Product Drawing

  • N-BK7 or UV Fused Silica Substrate
  • AR Coatings Centered Around Common Lasing Wavelengths
  • Ø1" (Ø25.4 mm) Windows, 5.0 mm Thick
  • High Damage Thresholds (See Below for Details)
Damage Threshold Specifications
Item # Damage Threshold
T-WL11050-C10 10 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.226 mm)
Diameter  1" (25.4 mm)
Diameter Tolerance +0.0 / -0.2 mm
Thickness 5.0 mm
Thickness Tolerance ±0.3 mm
Clear Aperture ≥22.86 mm
Parallelism ≤5 arcsec
Surface Flatness ≤λ/10
Surface Quality 10-5 Scratch-Dig

AR Coating Range 523 - 532 nm

Damage Threshold 10 J/cm2 at 532 nm, 10 ns, 10 Hz, Ø0.226 mm

Substrate N-BK7

Reflectance over AR Coating Range Ravg < 0.5%
