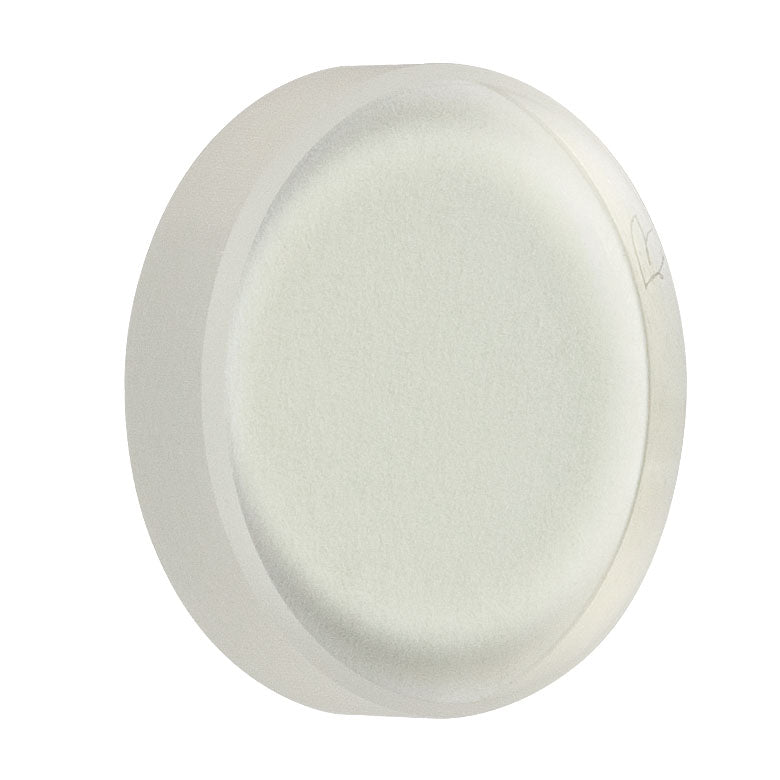

T-WL11050-C11 - Ø1" N-BK7 Laser Window, AR Coated: 610 - 860 nm
T-WL11050-C11 - Ø1" N-BK7 Laser Window, AR Coated: 610 - 860 nm
Roll over image to zoom in Click on image to zoom
T-WL11050-C11 - Ø1" N-BK7 Laser Window, AR Coated: 610 - 860 nmT-WL11050-C11 - Ø1" N-BK7 Laser Window, AR Coated: 610 - 860 nm

T-WL11050-C11 - Ø1" N-BK7 Laser Window, AR Coated: 610 - 860 nm

Fosco ConnectSKU: T-WL11050-C11
Price:
$ 205.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-WL11050-C11 - Ø1" N-BK7 Laser Window, AR Coated: 610 - 860 nm

  • N-BK7 or UV Fused Silica Substrate
  • AR Coatings Centered Around Common Lasing Wavelengths
  • Ø1" (Ø25.4 mm) Windows, 5.0 mm Thick

Product Drawing

Diameter  1" (25.4 mm)
Diameter Tolerance +0.0 / -0.2 mm
Thickness 5.0 mm
Thickness Tolerance ±0.3 mm
Clear Aperture ≥22.86 mm
Parallelism ≤5 arcsec
Surface Flatnessa ≤λ/10
Surface Quality 10-5 Scratch-Dig

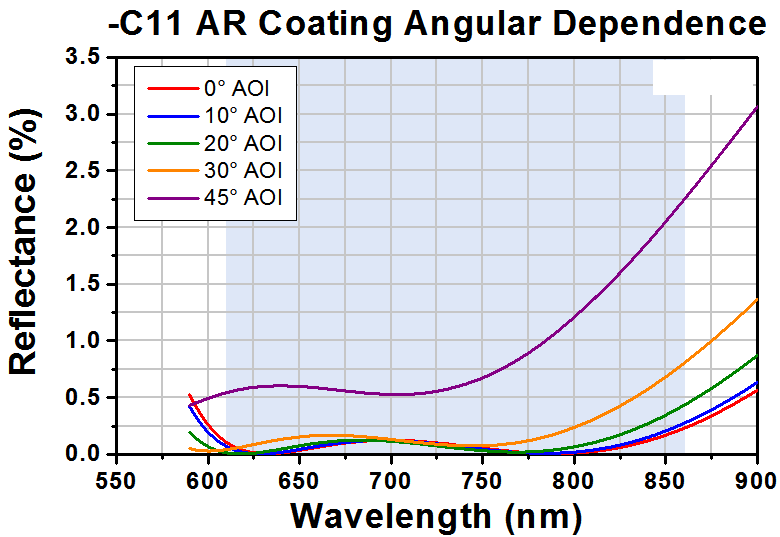

AR Coating Range 610 - 860 nm

Reflectance over AR Coating Range Ravg < 0.5%

Damage Threshold 7.5 J/cm2 at 810 nm, 10 ns, 10 Hz, Ø0.133 mm

Damage Threshold Specifications
Item # Damage Threshold
T-WL11050-C11 7.5 J/cm2 (810 nm, 10 ns, 10 Hz, Ø0.133 mm)
