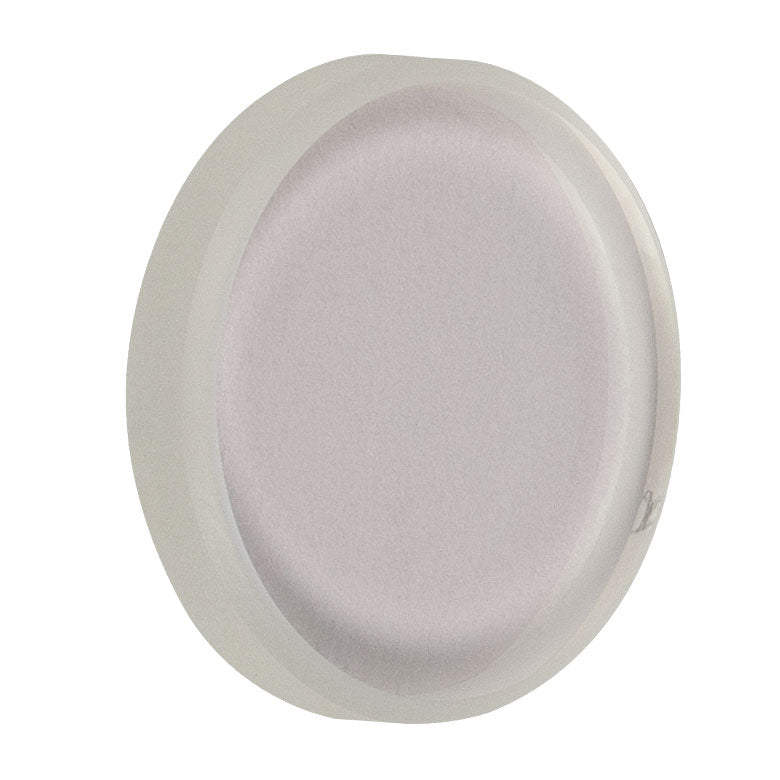

T-WL11050-C14 - Ø1" N-BK7 Laser Window, AR Coated: 1047 - 1064 nm
- N-BK7
- AR Coatings Centered Around Common Lasing Wavelengths
- Ø1" (Ø25.4 mm) Windows, 5.0 mm Thick
| Damage Threshold Specifications |
| Item # |
Damage Threshold |
| T-WL11050-C14 |
10 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø0.459 mm) |
Product Drawing
| Diameter |
1" (25.4 mm) |
| Diameter Tolerance |
+0.0 / -0.2 mm |
| Thickness |
5.0 mm |
| Thickness Tolerance |
±0.3 mm |
| Clear Aperture |
≥22.86 mm |
| Parallelism |
≤5 arcsec |
| Surface Flatness |
≤λ/10 |
| Surface Quality |
10-5 Scratch-Dig |
| AR Coating Range |
1047 - 1064 nm |

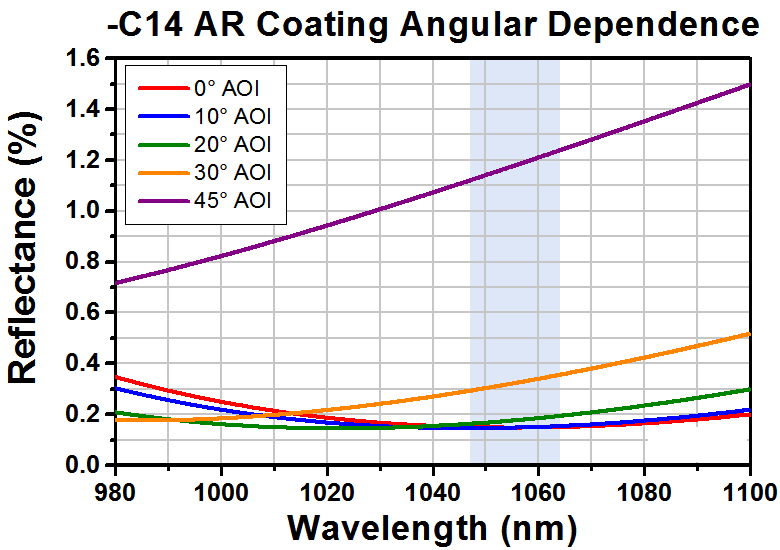

| Reflectance over AR Coating Range |
Ravg < 0.5% |
| Substrate |
N-BK7 |
|
Damage Threshold
|
10 J/cm2 at 1064 nm, 10 ns, 10 Hz, Ø0.459 mm |
