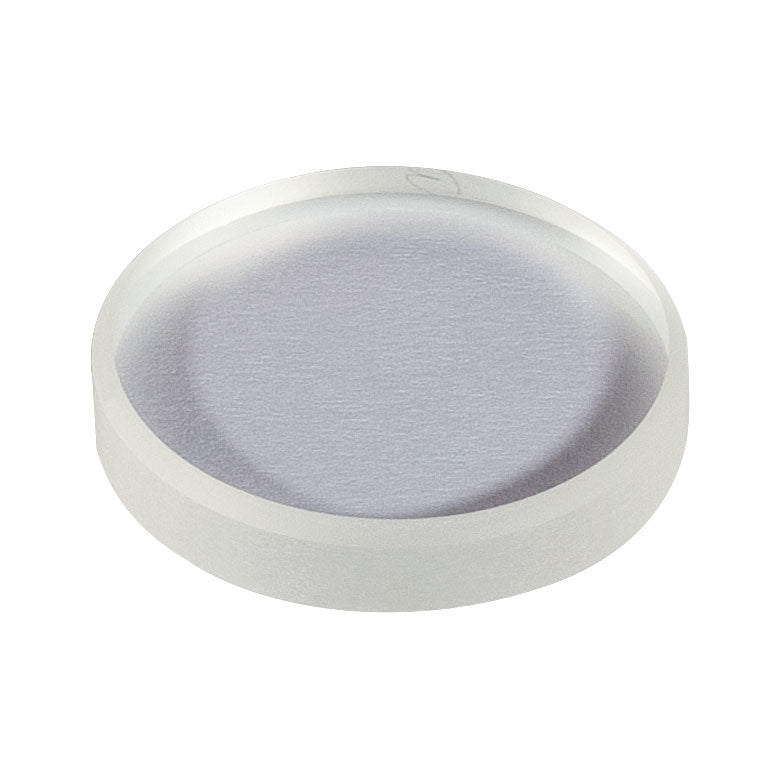

T-WL11050-C15 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 & 1047 - 1064 nm
T-WL11050-C15 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 & 1047 - 1064 nm
Roll over image to zoom in Click on image to zoom
T-WL11050-C15 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 & 1047 - 1064 nmT-WL11050-C15 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 & 1047 - 1064 nm

T-WL11050-C15 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 & 1047 - 1064 nm

Fosco ConnectSKU: T-WL11050-C15
Price:
$ 215.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-WL11050-C15 - Ø1" N-BK7 Laser Window, AR Coated: 523 - 532 & 1047 - 1064 nm

Product Drawing

Damage Threshold Specifications
Item # Damage Threshold
T-WL11050-C15 5 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.245 mm)
10 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø0.459 mm)
Diameter  1" (25.4 mm)
Diameter Tolerance +0.0 / -0.2 mm
Thickness 5.0 mm
Thickness Tolerance ±0.3 mm
Clear Aperture ≥22.86 mm
Parallelism ≤5 arcsec
Surface Flatness ≤λ/10
Surface Quality 10-5 Scratch-Dig

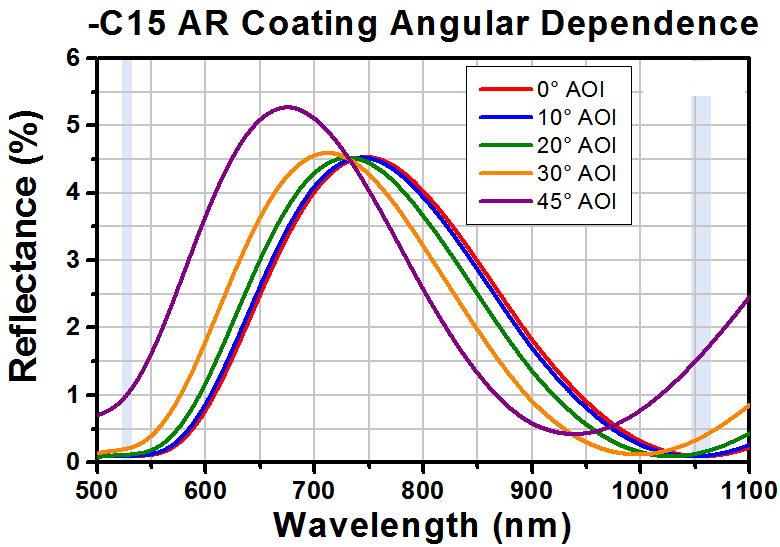

AR Coating Range 523 - 532 nm
& 1047 - 1064 nm
Reflectance over AR Coating Range Ravg < 0.5%
Substrate N-BK7
Damage Threshold 5 J/cm2 at 532 nm, 10 ns, 10 Hz, Ø0.245 mm
10 J/cm2 at 1064 nm, 10 ns, 10 Hz, Ø0.459 mm
