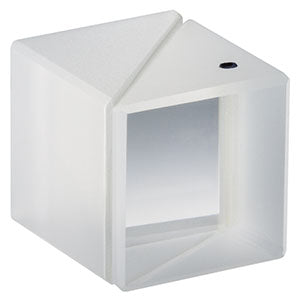

T-WP10P - Unmounted Wollaston Prism, 20° Beam Separation, 350 - 2300 nm Uncoated Calcite
T-WP10P - Unmounted Wollaston Prism, 20° Beam Separation, 350 - 2300 nm Uncoated Calcite
T-WP10P - Unmounted Wollaston Prism, 20° Beam Separation, 350 - 2300 nm Uncoated Calcite
Roll over image to zoom in Click on image to zoom
T-WP10P - Unmounted Wollaston Prism, 20° Beam Separation, 350 - 2300 nm Uncoated CalciteT-WP10P - Unmounted Wollaston Prism, 20° Beam Separation, 350 - 2300 nm Uncoated CalciteT-WP10P - Unmounted Wollaston Prism, 20° Beam Separation, 350 - 2300 nm Uncoated Calcite

T-WP10P - Unmounted Wollaston Prism, 20° Beam Separation, 350 - 2300 nm Uncoated Calcite

Fosco ConnectSKU: T-WP10P
Price:
$ 985.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-WP10P - Unmounted Wollaston Prism, 20° Beam Separation, 350 - 2300 nm Uncoated Calcite

  • Unmounted Calcite Wollaston Prism
  • Ideal for OEM Applications
  • Provides a 20° Separation Angle

Product Drawing

Item # WP10P
Extinction Ratio >100 000:1
Substrate Wavelength Range 350 nm to 2.3 μm
Beam Separation Angle (Typical) 20° at 633 nm

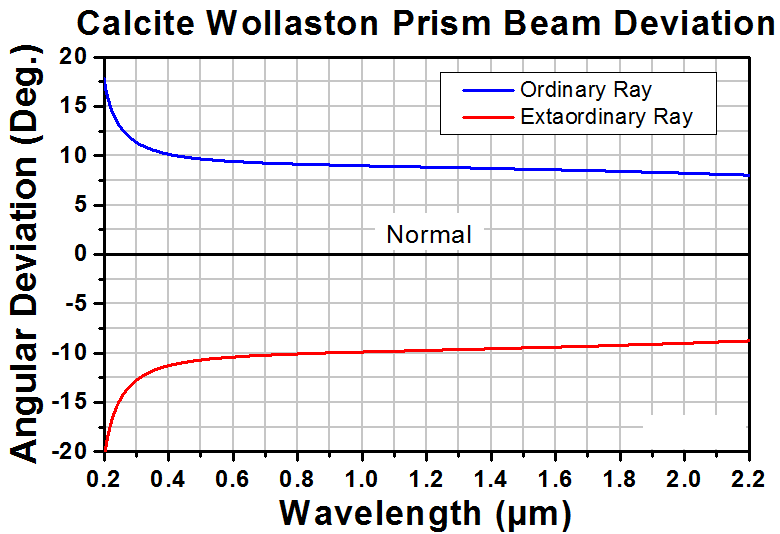

Beam Deviation Graph
(Click to Enlarge)		 Click
Clear Aperture Ø10.0 mm
Transmitted Wavefront Error <λ/4 at 632.8 nm
Surface Quality 20-10 Scratch-Dig
