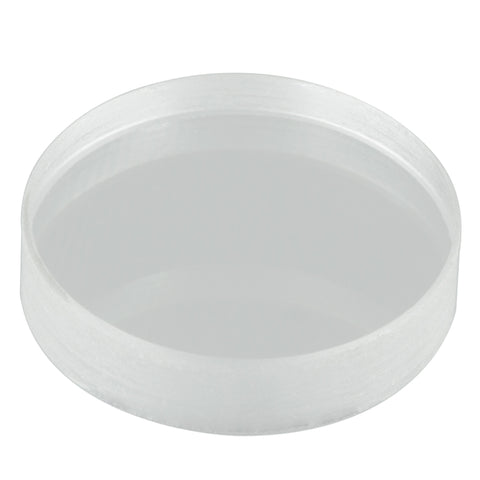

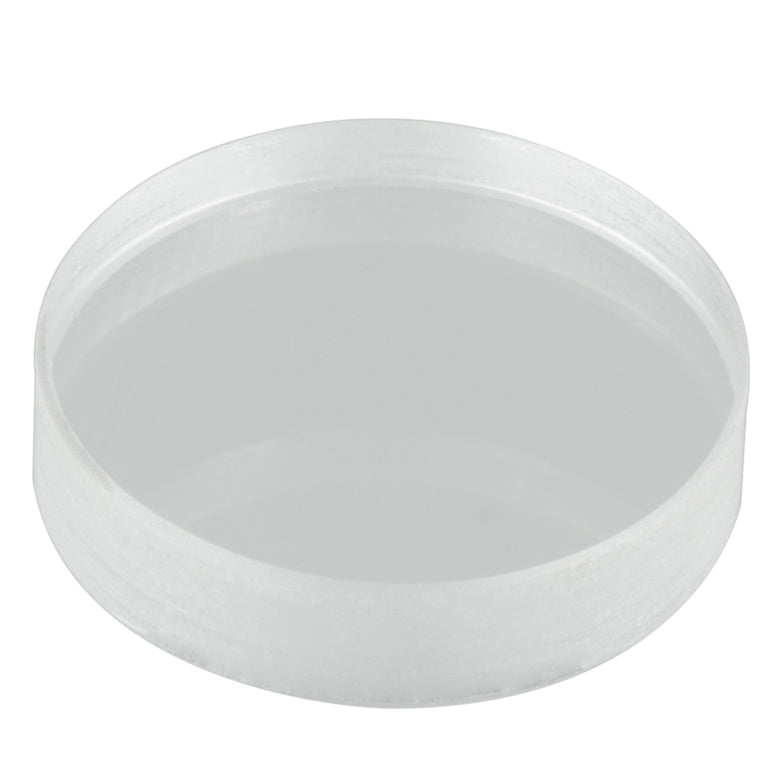

T-WW50530 - Ø1/2" Wedged CaF2 Window, Uncoated
T-WW50530 - Ø1/2" Wedged CaF2 Window, Uncoated
- 30 arcmin Wedged Windows
- Ø1/2", Ø1", or Ø2" Calcium Fluoride (CaF2) Windows Available
- Available Uncoated (180 nm - 8.0 µm) or with -D Broadband AR Coating (1.65 - 3.0 µm)
| Item # | T-WW50530 |
|---|---|
| Wedge Angle | 30 ± 10 arcmin |
| Diameter | 1/2" (12.7 mm) |
| Diameter Tolerance | +0.0 / -0.2 mm |
| Thickness | 3.0 mm |
| Thickness Tolerance | ±0.1 mm |
| Clear Aperture | ≥Ø11.4 mm |
|
Surface Flatness |
≤λ/16 over Central Ø5 mm ≤λ/8 over Entire Clear Aperture |
| Surface Quality | 40-20 Scratch-Dig |
| Wavelength Range | 180 nm - 8.0 µm (Uncoated) |

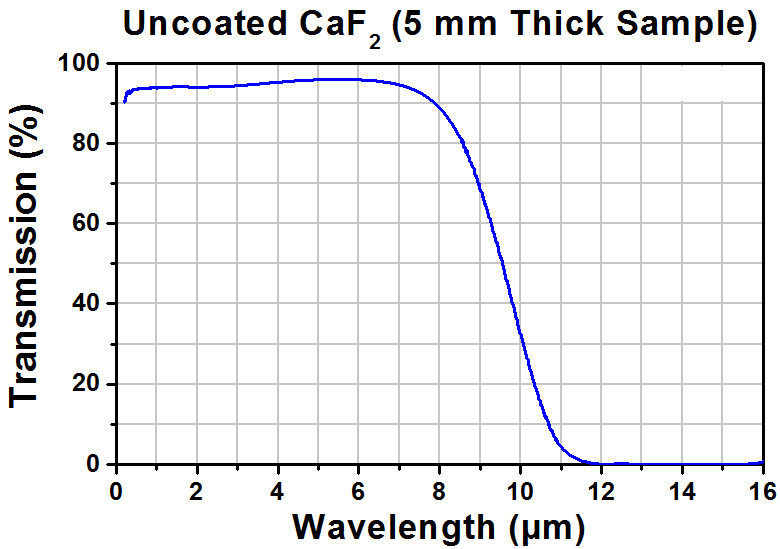

| Transmission Data |
Raw Data |
