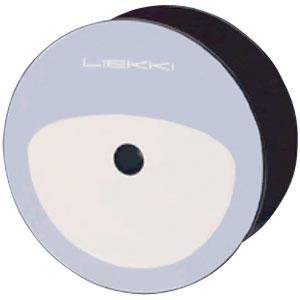

T-YB1200-10/125DC - Ytterbium-Doped LMA Double-Clad Fiber, 10 µm Core Diameter, Unit Pricing Per Meter
T-YB1200-10-125DC - Ytterbium-Doped LMA Double-Clad Fiber, 10 µm Core Diameter, Unit Pricing Per Meter
- Cladding-Pumped Design
- Single Mode (SM) or Large-Mode-Area (LMA) Operation
- High Pump Absorption with Low Photodarkening
- High Slope Efficiency (75 - 84%)
Applications
- High Average Power Pulsed Amplifiers
- Medium and High-Power Pulsed and CW Lasers
- Materials Processing
- LIDAR
- Rangefinding
- High Cladding Absorption and a Single Mode Core Are Ideal for Fiber-based Power Amplifiers
- Cladding Geometry Octagonal
-
Absorption @ 920 nm 1.7 ± 0.3 dB/m
- Core Diameter 10.0 ± 1.0 µm
- Cladding Diameter 125 ± 2 µm
- Coating (Second Cladding) Diameter 245 ± 15 µm
-
Core NA 0.080 ± 0.005
| Item # | Type | Absorption @ 920 nm |
Pump Type |
Core Diameter |
Cladding Diameter |
|---|---|---|---|---|---|
| T-YB1200-4/125 | SM | 280 ± 50 dB/m | Core | 4.4 ± 0.8 μm MFD | 125 ± 2 μm |
| T-YB1200-6/125DC | 0.55 ± 0.1 dB/m | Cladding | 7.0 ± 0.5 μm MFD | ||
| T-YB1200-10/125DC | LMA | 1.7 ± 0.3 dB/m | 10.0 ± 1.0 μm | ||
| T-YB1200-20/400DC | 0.55 ± 0.05 dB/m | 20.0 ± 1.5 μm | 400 ± 10 μm | ||
| T-YB1200-25/250DC | 2.3 ± 0.3 dB/m | 25.0 ± 1.5 μm | 250 ± 5 μm | ||
| T-YB2000-10/125DC | 2.0 ± 0.4 dB/m | 10 ± 1.0 μm | 125 ± 2 μm |
