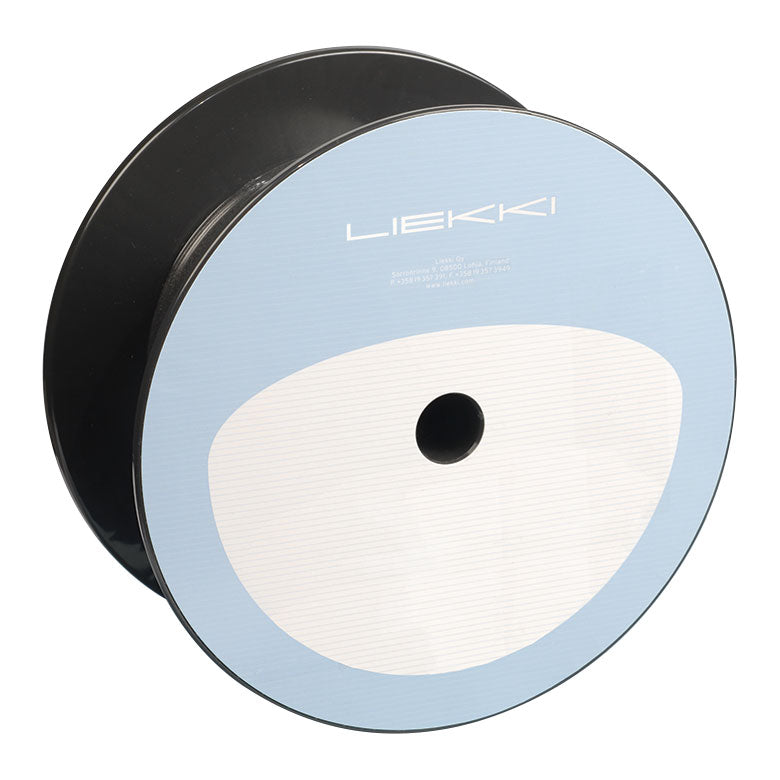

T-YB1200-6/125DC-PM - Ytterbium-Doped PM Single Mode Double-Clad Fiber, 7 µm MFD, Unit Pricing Per Meter
T-YB1200-6-125DC-PM - Ytterbium-Doped PM Single Mode Double-Clad Fiber, 7 µm MFD, Unit Pricing Per Meter
Features
- Ytterbium-Doped Silica Fiber for ~1000 nm to 1100 nm Fiber Lasers and Amplifiers
- Single Mode and Large Mode Area Options Available
- Cladding-Pumped Designs for 1 mW to >20 W Output Power in Pulsed Operation
- Core-Pumped Single Clad Designs with High Core Pump Absorption
- Matched SM or LMA Passive Fiber Sold Below
- Industry-Standard Active Fiber Geometries with Ø125 or Ø250 µm Cladding
- PANDA Stress Rods for Polarization-Maintaining Operation
- Telecom-like geometry for compatibility with standard components such as gratings and combiners
- Cladding Geometry Round, PANDA
- Absorption @ 920 nm 0.55 ± 0.1 dB/m
- MFD 7.0 ± 0.5 µm
- Cladding Diameter 125 ± 1 µm
- Coating (Second Cladding) Diameter 245 ± 15 µm
- Core NA 0.12
| Item # | Type | Cladding Type |
Absorption @ 920 nm |
Pump Type |
MFD | Cladding Diameter |
|---|---|---|---|---|---|---|
| T-YB1200-6-125DC-PM | SM | Double |
0.55 ± 0.1 dB/m |
Cladding | 7.0 ± 0.5 μm | 125 ± 1 μm |
