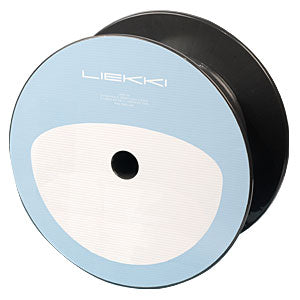

T-YB2000-10/125DC - Highly Ytterbium-Doped LMA Double-Clad Fiber, 10 µ

T-YB2000-10/125DC - Highly Ytterbium-Doped LMA Double-Clad Fiber, 10 µm Core Diameter, Unit Pricing Per Meter

Fosco Connect Part No.: T-YB2000-10-125DC

T-YB2000-10-125DC - Highly Ytterbium-Doped LMA Double-Clad Fiber, 10 µm Core Diameter, Unit Pricing Per Meter

Ytterbium-Doped Silica Fiber for ~1000 nm to 1100 nm Fiber Lasers and Amplifiers
Single Mode and Large-Mode-Area Fibers Available
Core- and Cladding-Pumped Designs for 1 mW to >100 W Output Power
Matched Passive Fiber Also Sold Below
Industry-Standard Active Fiber Geometries with Ø125, Ø250, or Ø400 µm Cladding
Type Large Mode Area
Absorption @ 920 nm 2.0 ± 0.4 dB/m
Pump Type Cladding
Core Diameter 10 ± 1.0 μm
Cladding Diameter 125 ± 2 μm
High Doping Concentration for Photodarkening Resistance
Cladding Geometry Octagonal
Absorption @ 920 nm 2.0 ± 0.4 dB/m
Core Diameter 10 ± 1.0 µm
Cladding Diameter 125 ± 2 µm
Coating (Second Cladding) Diameter 245 ± 15 µm
Core NA 0.12 ± 0.02
Cladding NA >0.46
