Tempo FIP100 KIT Automated Fiber Inspection Probe Kit

Overview

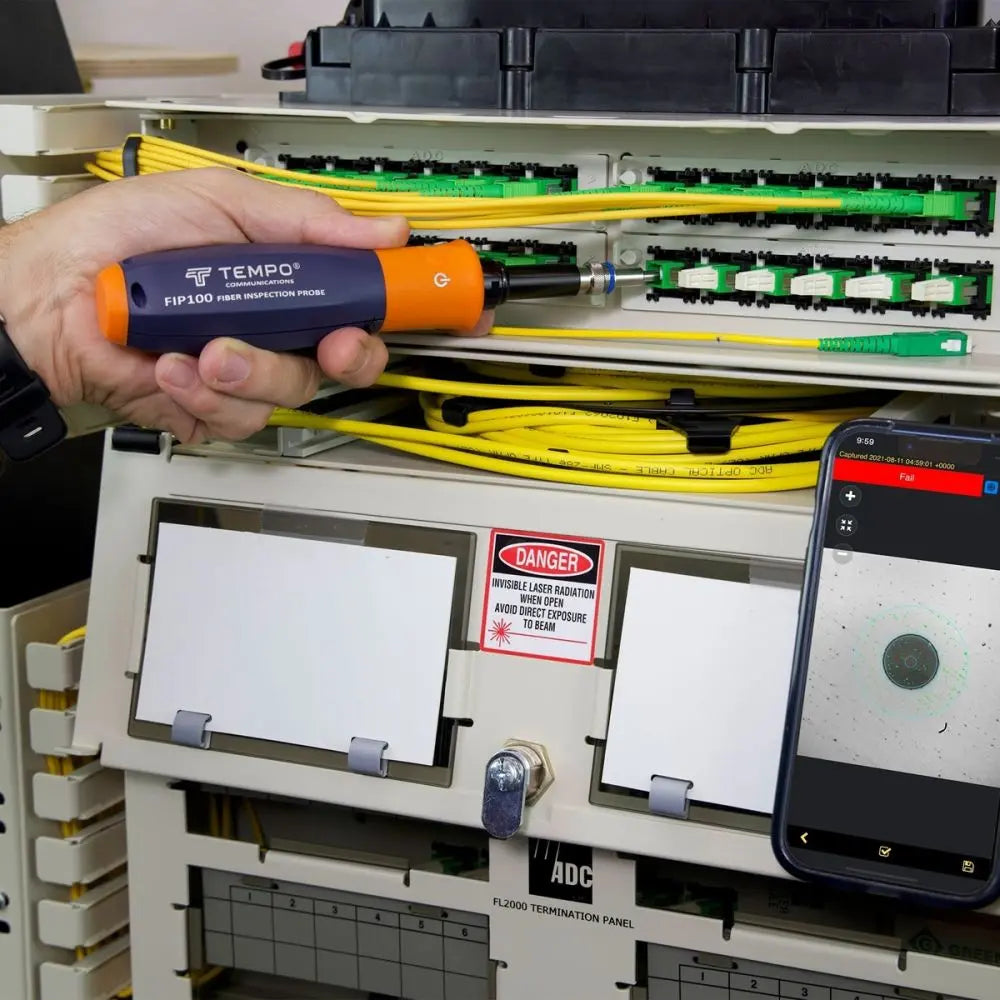

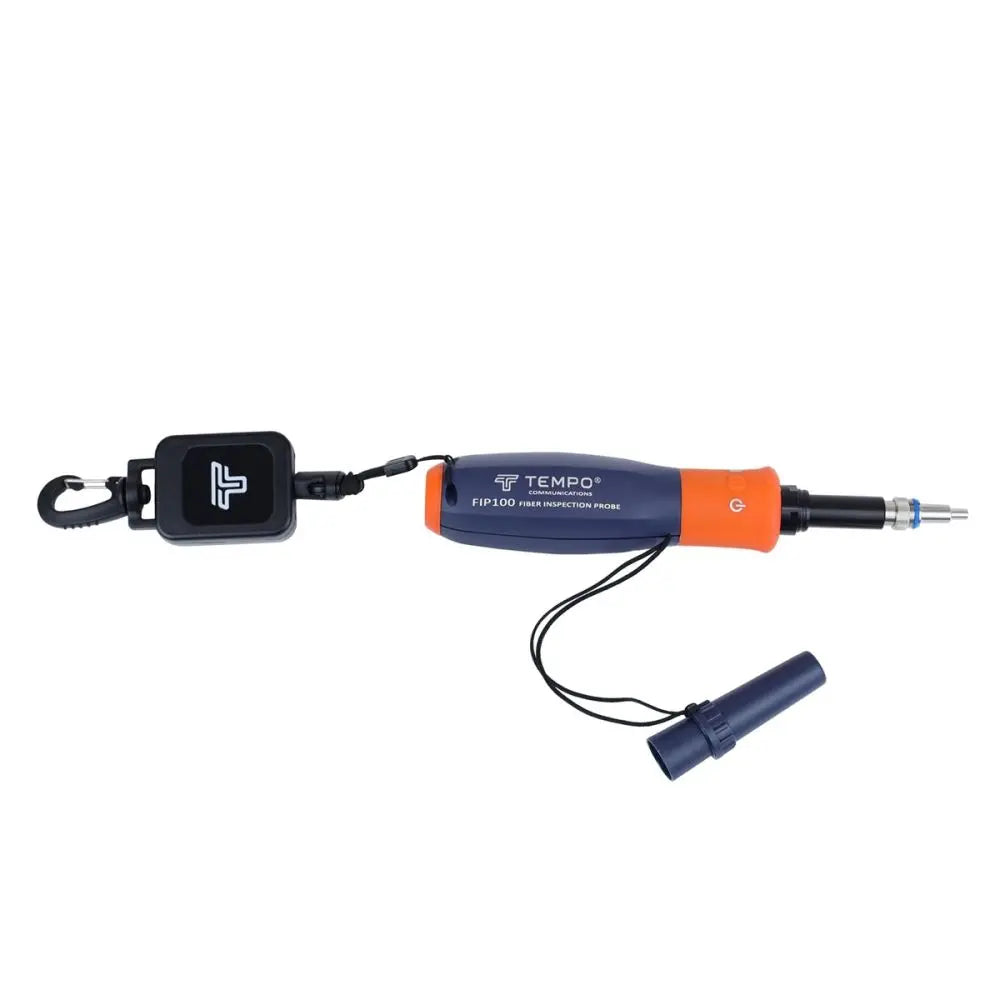

The Tempo Communications FIP100 Fiber Inspection Probe Kit is a specialized tool designed to verify fiber optic connector cleanliness and certify endface condition during installation or troubleshooting. By automating the focus, image capture, and analysis process, this probe significantly reduces manual inspection time.

Featuring an integrated red/green LED indicator, the probe provides immediate pass/fail feedback directly on the device. It utilizes standard-compliant algorithms to assess fiber health and supports the generation of detailed PDF reports through a dedicated mobile application for iOS and Android devices, streamlining documentation for network field engineers.

Key Features

• Automated Inspection
  Features auto-focus and auto-capture technology to simplify the inspection process with a single button press.
• Pass/Fail Analysis
  Provides instant verification based on industry standards, including IEC 61300-3-35 and IPC-8497-1.
• Wireless Connectivity
  Uses IEEE 802.11bng WiFi to connect to mobile devices for remote monitoring and reporting.
• Detailed Reporting
  The mobile application generates and shares PDF reports, facilitating professional documentation of connector condition.
• Status Indication
  An integrated red/green LED on the probe body provides immediate visual pass/fail confirmation.
• Interchangeable Tips
  Supports a wide range of connector types for both patch cords and bulkhead-mounted applications.
• Rugged Design
  Constructed for field use, ensuring reliable performance in various operating environments.

Applications

• Verifying fiber connector cleanliness before system connection
• Certifying connector endface condition after installation
• Documenting connector damage during troubleshooting
• Field inspection of PC/UPC and APC polished connectors

Technical Specifications

Frequently Asked Questions

What standards does the FIP100 support for pass/fail analysis?
The probe supports analysis based on IEC 61300-3-35, IPC-8497-1, and AT&T TP-76461 standards.

Can I use this probe with my smartphone?
Yes, it is compatible with both iOS and Android platforms via a dedicated app.

What kind of connectivity does the probe use?
It utilizes IEEE 802.11bng WiFi connectivity.

Does the probe come with tips for all connector types?

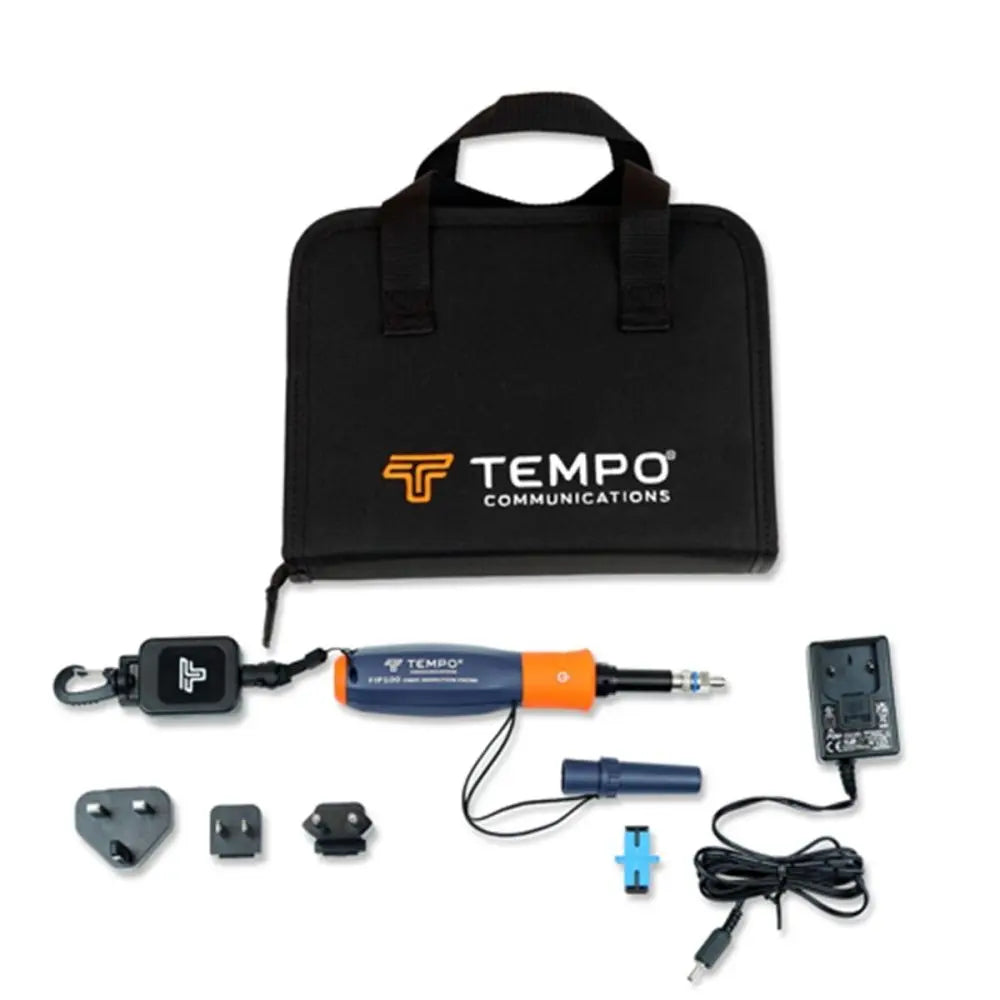

The kit comes with an SC/UPC bulkhead tip; additional interchangeable tips for other connectors are available separately.

How do I know if the connector passed inspection?
The probe features an integrated red/green LED to provide immediate status indication, and the mobile app provides detailed results.
