Overview

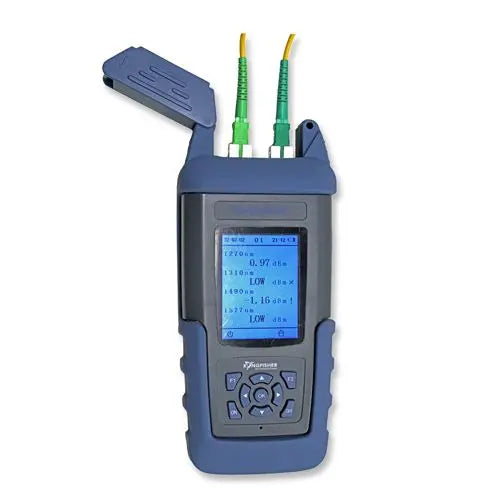

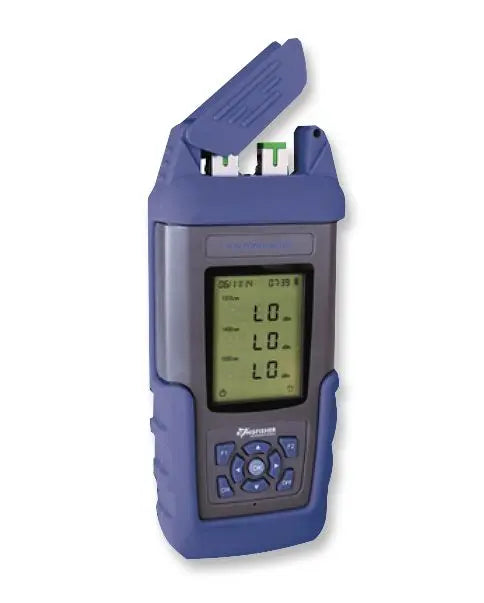

The Tempo Communications T6106-APC is an in-line PON power meter designed for testing BPON, EPON, GPON, XGPON, and XGSPON networks. It is essential for service turn-up and maintenance, allowing technicians to verify power levels on live systems without disrupting service.
This device supports both in-line and terminating modes. When deployed in-line, it simultaneously measures and displays power for all four operational PON wavelengths. The unit features an intuitive, sunlight-readable LCD, internal data storage for up to 99 records, and PC-downloadable data management capabilities.
Key Features
-
Simultaneous Wavelength Measurement
Simultaneously monitors all four PON wavelengths (1270, 1310, 1490, and 1577nm) for efficient turn-up testing. -
In-Line Testing Capability
Allows for testing on live systems without interrupting service, minimizing network downtime during maintenance. -
Broad Compatibility
Supports testing across diverse standards including BPON, EPON, GPON, XGPON, and XGSPON architectures. -
Integrated Data Storage
Features internal memory to store up to 99 test records for future reporting and analysis. -
PC Connectivity
Compatible with Data Management Software to download saved test results to a PC. -
Field-Ready Design
Equipped with a large, sunlight-readable LCD display and a rechargeable lithium battery providing 10 hours of operation.
Applications
- 1G/10G FTTH/PON service turn-up
- Network maintenance and troubleshooting
- Upstream burst signal verification (1270/1310nm)
- Downstream signal monitoring (1490/1577nm)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Tempo Communications |
| Model | T6106-APC |
| PON Types Supported | BPON, EPON, GPON, XGPON, XGSPON |
| Wavelengths Measured | 1270nm, 1310nm (Upstream); 1490nm, 1577nm (Downstream) |
| Modes of Operation | In-line, Terminating |
| Internal Memory | 99 test records |
| Power Supply | 7.4V 1000mAH rechargeable lithium battery |
| Battery Life | 10 hours (continuous) |
| Warranty | 1-year |
| Calibration Cycle | 3 years |
Frequently Asked Questions
What PON standards are compatible with this meter?
The T6106-APC supports BPON, EPON, GPON, XGPON, and XGSPON testing.
Does this unit require me to disconnect service to test?
No, the unit supports an in-line mode designed for testing live systems without service interruption.
Can I export the test data to my computer?
Yes, the unit features 99 internal memory slots and data is downloadable to a PC via Data Management Software.
How long will the battery last on a full charge?
The 7.4V 1000mAH battery provides approximately 10 hours of continuous operation.
What is the recommended calibration interval?
Tempo recommends a calibration cycle of 3 years.
