Tempo TeleScout

Overview

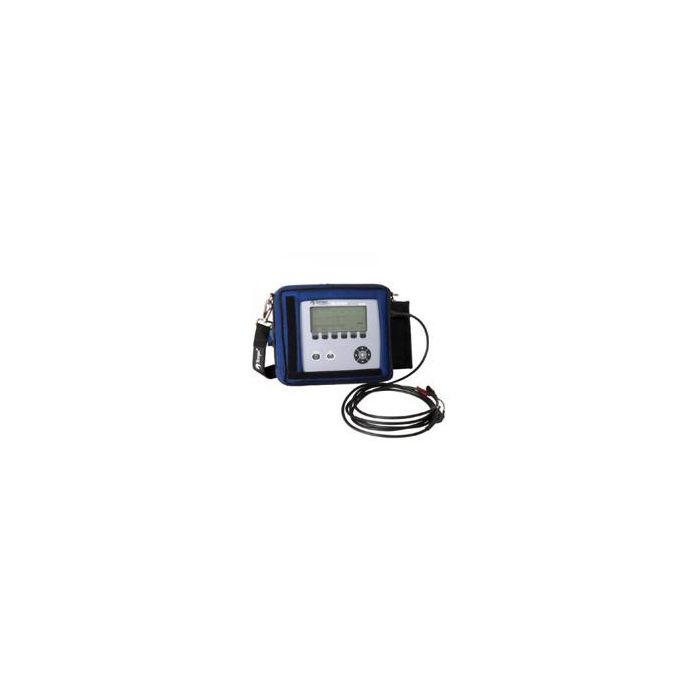

The Tempo TeleScout is a high-performance Time Domain Reflectometer (TDR) engineered specifically for telecommunications technicians working with twisted pair cabling. This instrument is designed to simplify fault location, allowing field personnel to spend less time operating equipment and more time performing necessary repairs.

The TeleScout features an automated instrument control mode that intelligently adjusts impedance, velocity of propagation (Vp), gain, pulse width, and vertical positioning during cable scanning. With a fault location range of up to 15km (45,000 ft), it is suitable for various outside plant and premise cabling environments. The unit includes internal memory capable of storing up to 20 waveforms with associated notes, facilitating efficient documentation and reporting.

Key Features

• Two-Pair Test Capability
  Allows for simultaneous monitoring and comparison of two cable pairs to quickly isolate faults.
• Automatic Instrument Control
  Eliminates manual calibration by automatically setting critical parameters like gain and pulse width.
• 15km Fault Range
  Provides extensive distance capability to support long-haul and distribution network testing.
• Single-Button Zoom
  Enables rapid visual inspection of specific waveform segments for precise fault identification.
• Configurable Vp
  Supports a wide range of Velocity of Propagation (0.300 to 1.000) settings for compatibility with diverse cable types.
• Pair Comparison Mode
  Identifies subtle cable defects by comparing two different pairs side-by-side on the display.
• Intermittent Fault Location
  Detects and captures transient issues that are often missed by traditional testing methods.
• Integrated Data Storage
  Saves up to 20 waveforms and notes internally for later analysis or documentation.

Applications

• Telephone twisted pair network troubleshooting
• Fault location in copper distribution cabling
• Identifying cable splits and crosstalk
• Routine maintenance of telecommunications line integrity

Package Contents

• Tempo TeleScout TDR Unit
• Test Leads/Cables
• Carrying Case
• Batteries

Technical Specifications

Frequently Asked Questions

What is the maximum range of the TeleScout?
The unit can locate faults at distances up to 15km (45,000 ft).

Can I store my test results?
Yes, the device features internal storage for up to 20 waveforms and accompanying notes.

Does the unit support different cable types?
Yes, it is configurable for various cable types with a Vp range between 0.300 and 1.000.

What is the primary benefit of the automatic mode?
It automatically adjusts impedance, gain, pulse width, and vertical position, reducing the need for manual configuration.

Can I print my results?
The unit includes a serial printer output port for printing stored or displayed waveforms.
