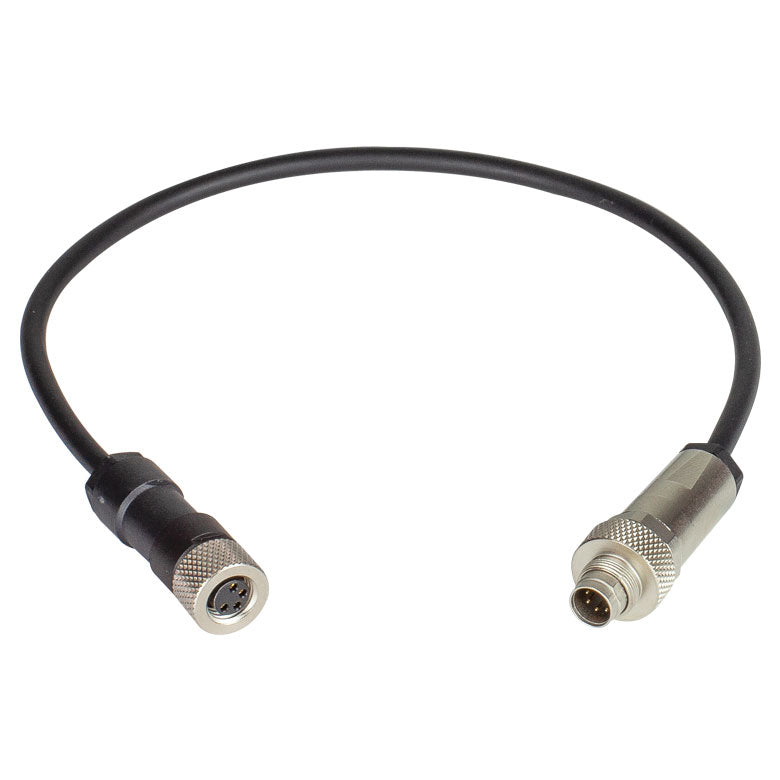

TH-CAB-CS20 - Adapter Cable for CS20Kx UV Curing LED Systems
TH-CAB-CS20 - Adapter Cable for CS20Kx UV Curing LED Systems
| THCAB-CS20 Connector Pin-Out | ||
|---|---|---|
| Driver Unit Side Pin # | Description | LED Side Pin # |
| 1 | GND | 3 |
| 2 | I/O EEPROM | 4 |
| 3 | Not Connected | N/A |
| 4 | Not Connected | N/A |
| 5 | Not Connected | N/A |
| 6 | LED - | 2 |
| 7 | LED + | 1 |
