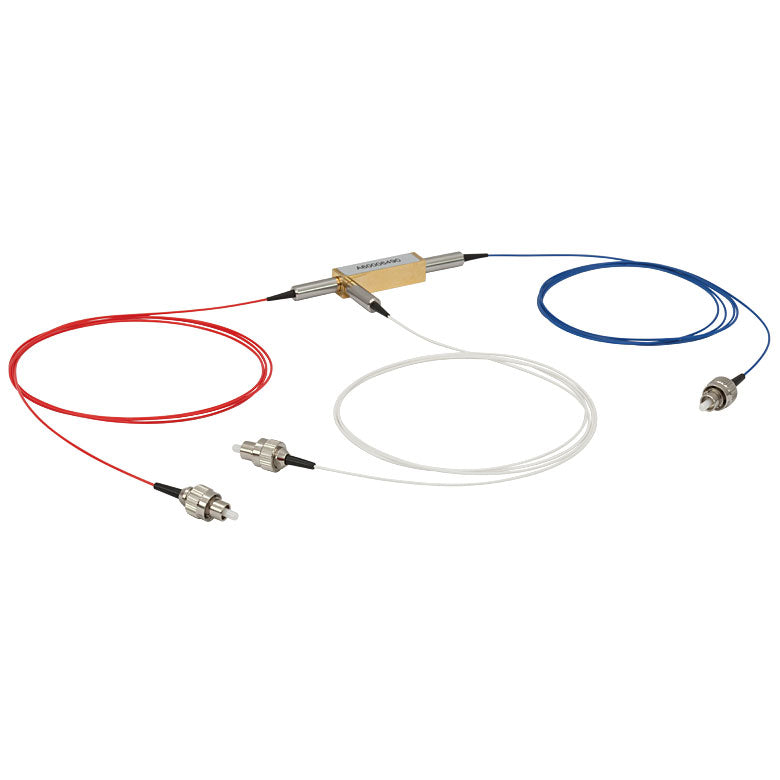

TH-CIR1064-FC - Fiber Optic Circulator, 1050 - 1070 nm, SMF, FC/PC

• Wavelength Range 1050 - 1070 nm
• Single Mode Fiber With No Connectors, FC/PC Connectors, or FC/APC Connectors

Product Drawing

• Wavelength Range From 1050 nm - 1070 nm
• Insertion Loss 2.1 dB Max^b

• Isolation^e   ≥20 dB^b
• Directivity (1-3) ≥45 dB
• Polarization Dependent Loss ≤0.2 dB
• Polarization Mode Dispersion ≤0.05 ps
• Return Loss ≥50 dB
• Maximum Power Level (CW) 300 mW
• Package Dimensions 34 mm × 8.4 mm × 8.4 mm
• Fiber HI1060, 900 µm Loose Tube
• Length  1.0 m
• Operating Temperature 0 to 70 °C
• Storage Temperature -40 to 85 °C
• Operating Relative Humidity 5% - 60%
• Storage Relative Humidity 5% - 85%
