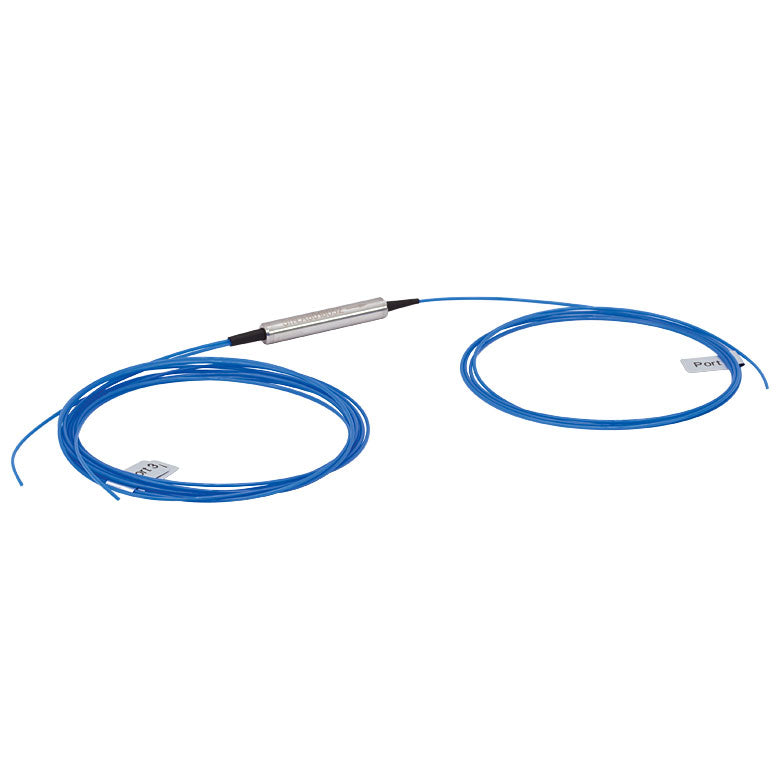

TH-CIR1064PM - PM Fiber Optic Circulator, 1059 - 1069 nm, No Connectors
Product Drawing
Center Wavelength 1064 nm
Polarization-Maintaining Fiber With No Connectors, FC/PC Connectors, or FC/APC Connectors
Damage Threshold of 300 mW (CIR1064PM) or 3 W (OC-L-1064)
Fast Axis Blocking
Wavelength Range 1053 – 1075 nm
Insertion Loss 1.3 – 1.9 dB
Isolationb 30 dB
Directivity (1-3) 40 dB
Polarization Extinction Ratio >20 dB
Return Loss 50 dB
Damage Threshold 3 W
Package Dimensions 32.6 x 44.5 x 63.5 mmc
Fiber PM980-XP PANDA-Style PM Fiber, Hytrel®d Loose Tube, Light in Slow Axis
Length 1.2 ± 0.2 m
Operating Temperature 10 to 50 °C
Storage Temperature -10 to 65 °C
Operating Relative Humidity 20% - 80%
Storage Relative Humidity 20% - 80%
