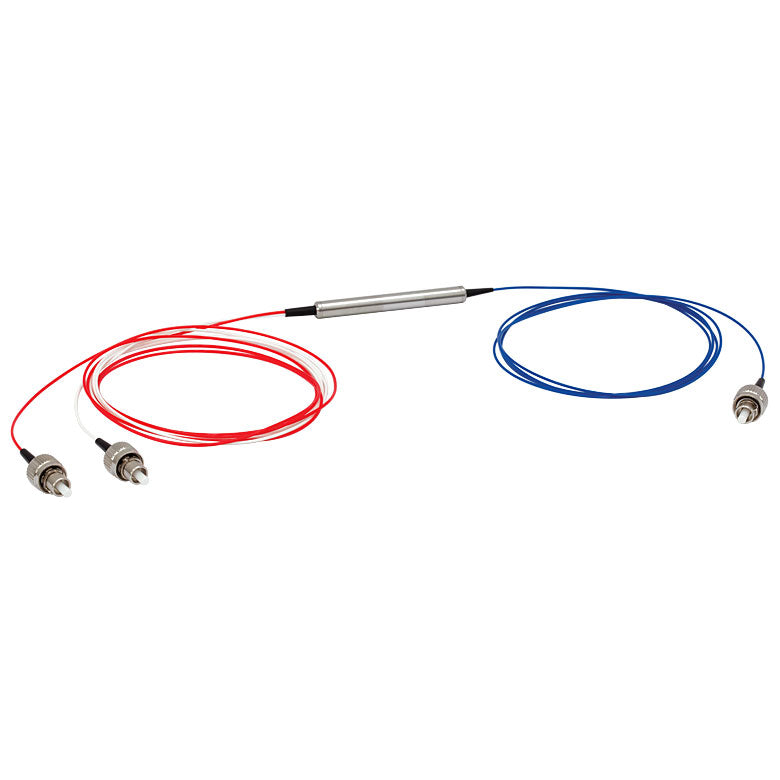

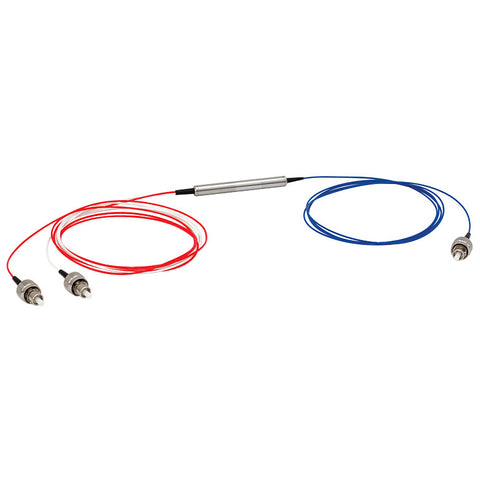

TH-CIR1310-FC - Fiber Optic Circulator, 1280 - 1340 nm, SMF, FC/PC

Product Drawing

• Wavelength Range From 1280 nm - 1400 nm
• Single Mode Fiber With No Connectors, FC/PC Connectors, or FC/APC Connectors
• Insertion Loss 1.6 Max^c,d

• Isolation^e  28 dB^c
• Directivity (1-3) 50 dB Min
• Polarization Dependent Loss 0.2 dB Max
• Polarization Mode Dispersion 0.05 ps Min
• Chromatic Dispersion 3 ps/nm Max
• Return Loss 45 dB Min^d
• Maximum Power Level (CW) 500 mW
• Package Dimensions Ø5.5 mm x 38 mm
• Fiber SMF-28e, 900 µm Loose Tube
• Length  1.0 ± 0.1 m
• Operating Temperature 0 to 70 °C
• Storage Temperature -40 to 85 °C
• Operating Relative Humidity 5% - 95%
• Storage Relative Humidity 5% - 95%
