TH-CT104 - Rotation Mount for Ø1/2" Optics to Use with CT1A(-M), CT1P(-M), or MS Stages
TH-CT104 - Rotation Mount for Ø1/2" Optics to Use with CT1A(-M), CT1P(-M), or MS Stages
- Coarse Rotation: 360° Continuously Adjustable
- Graduations: 2° Increments
- Mount Ø1/2" (Ø12.7 mm) Optics up to 0.29" (7.4 mm) Thick
- Runout: <0.0001" Along Optical Axis
- Maximum Clear Aperture: 0.43"
- Beam Height: 0.72" (18 mm)
- Lockable Design
- Compatible with MS-Series Translators and 30MM Cage Translation Stages

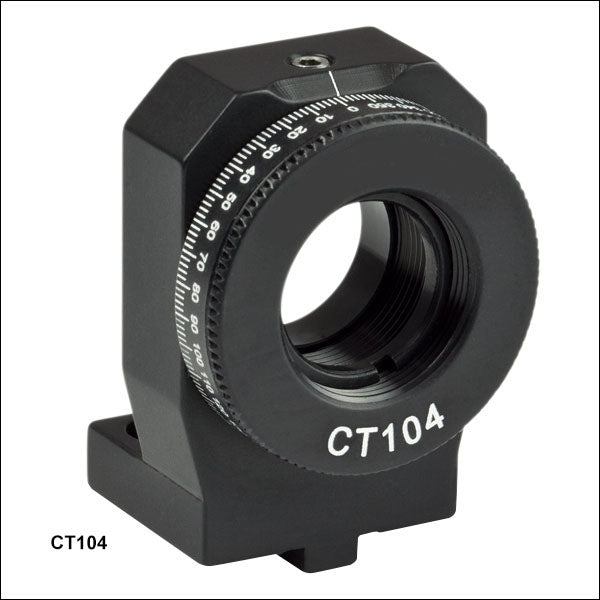

The CT104 has an internal SM05 threading for mounting Ø1/2" (Ø12.7 mm) optics and externally threaded SM05 threaded components. The CT104 mount provides 360° of continuous rotation for the mounted components. The 2° graduation allows for precise positioning of components such as linear polarizers and waveplates. A top-mounted, nylon-tipped setscrew is used to lock the position of the component. The mount is compatible with the MS103(-M) adapter plate and with the CT1A(-M) 30 mm cage Z-axis translation stage. One SM05RR retaining ring, which secures a component by sandwiching it between the ring and the back lip on the mount. Two 4-40 and two M3 cap screws for securing the mount are included with each unit.
