TH-DAS110 - Differential Adjuster Screw, 25 µm/Rev Fine Adjustment, 1/ – Fosco Connect

TH-DAS110 - Differential Adjuster Screw, 25 µm/Rev Fine Adjustment, 1/4"-80 Coarse Adjustment Threads

TH-DAS110 - Differential Adjuster Screw, 25 µm/Rev Fine Adjustment, 1/4"-80 Coarse Adjustment Threads

TH-DAS110 - Differential Adjuster Screw, 25 µm/Rev Fine Adjustment, 1/4"-80 Coarse Adjustment Threads

TH-DAS110 - Differential Adjuster Screw, 25 µm/Rev Fine Adjustment, 1/4"-80 Coarse Adjustment Threads

TH-DAS110 - Differential Adjuster Screw, 25 µm/Rev Fine Adjustment, 1/4"-80 Coarse Adjustment Threads

Fosco Connect Part No.: THDAS110

$ 76.00 or

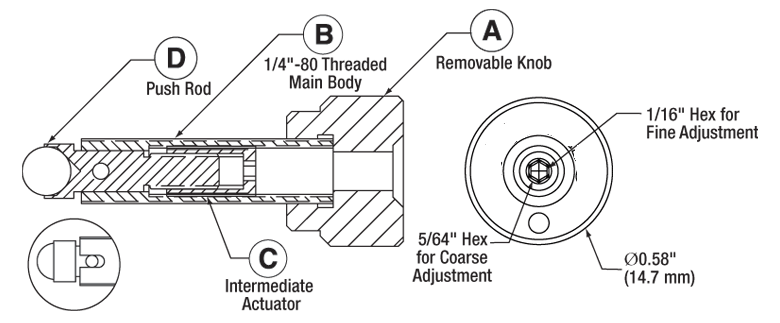

TH-DAS110 - Differential Adjuster Screw, 25 µm/Rev Fine Adjustment, 1/4"-80 Coarse Adjustment Threads

1.02" (26.0 mm) Adjuster Length (L)
Coarse Thread Length: 0.76" (19.3 mm)
Fine Adjustment: 25 µm/rev Over ≥400 µm of Travel
Ø0.49" (12.4 mm), 0.15" (3.8 mm) Thick Locking Ring
On-Axis Load Capacity: 11.25 lbs (5.1 kg)
Recommended Preload: 1 to 2 lbs (0.5 to 1 kg)
