TH-DC2200 - High-Power 1-Channel LED Driver with Pulse Modulation, 10.

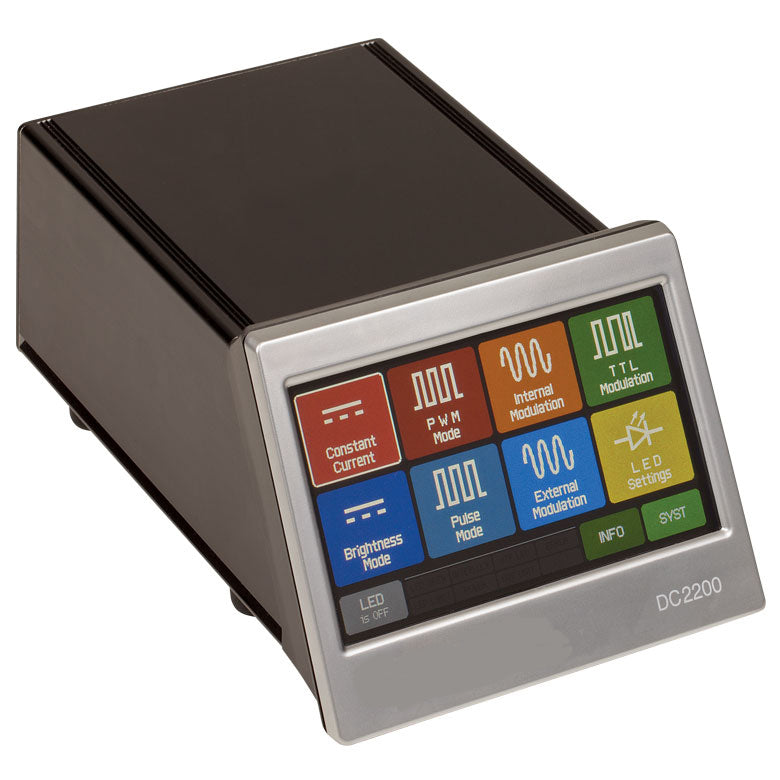

TH-DC2200 - High-Power 1-Channel LED Driver with Pulse Modulation, 10.0 A Max, 50.0 V Max

Fosco Connect Part No.: THDC2200

LED1 Terminal: 10.0 A
LED2 Terminal: 2.0 ATH-DC2200 - High-Power 1-Channel LED Driver with Pulse Modulation, 10.0 A Max, 50.0 V Max

Main Driver Features Touchscreen Interface with Internal and External Options for Pulsed and Modulated LED Operation

LED Driver Current Output (Max) LED1 Terminal: 10.0 A LED2 Terminal: 2.0 A

LED Driver Forward Voltage (Max) 50 V

Modulation Frequency (Max) 20 to 100 kHz (Internal) DC to 250 kHz (External)

External Control Interface(s) USB 2.0 and Analog (BNC)
