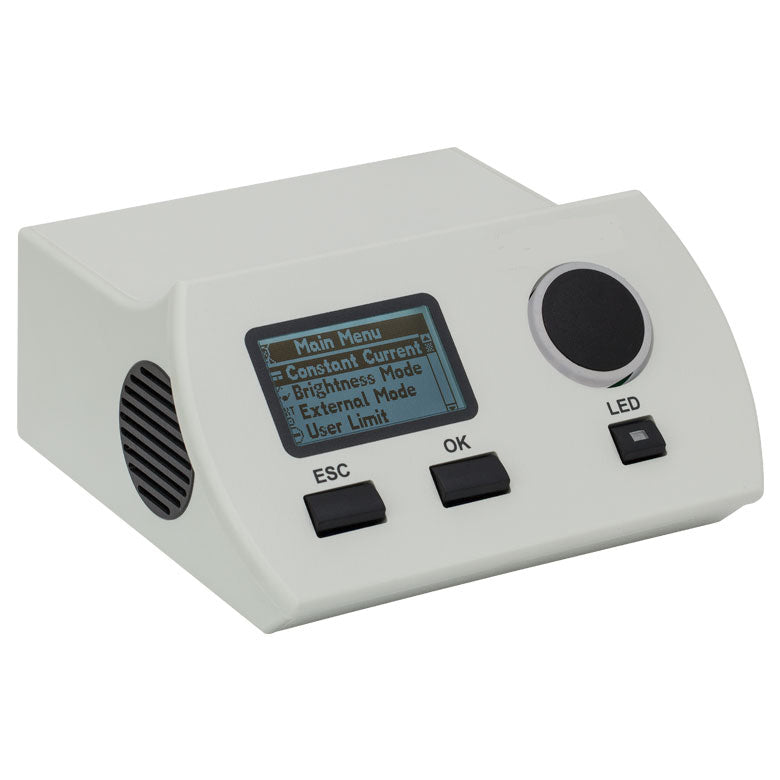

TH-DC4104 - 4-Channel LED Driver, 4 Modulation Inputs, 1 A, 5 V

TH-DC4104 - 4-Channel LED Driver, 4 Modulation Inputs, 1 A, 5 V

Product Drawing

Main Driver Features  4 Channels

LED Driver Current Output (Max) 1.0 A per Channel

LED Driver Forward Voltage (Max) 5 V

Modulation Frequency (Max) 100 kHz (External) Independently Controlled Channels

External Control Interface(s) USB 2.0 and Analog (8-Pin)

EEPROM Compatible: Reads Out LED Data for LED Settings Yes

LCD Display Yes

• The THDC4100 and THDC4104 can power and control up to four LEDs simultaneously when used with the THDC4100-HUB. The fiber-coupled LEDs on this page all require the THDC4100-HUB when used with the THDC4100 or THDC4104.
