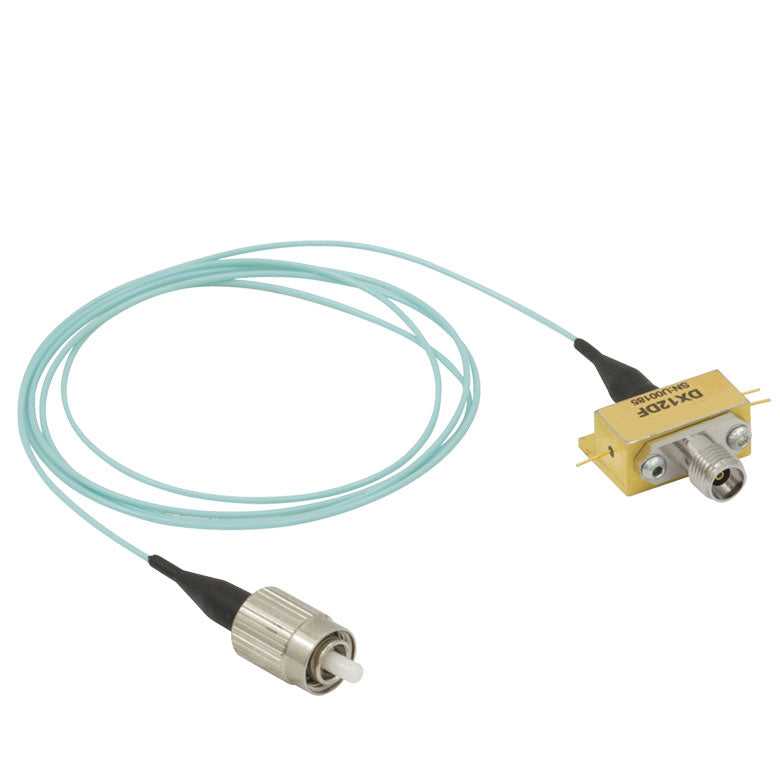

TH-DX12DF - Multimode Ultrafast Detector Module, 700 - 870 nm, DC - 12 GHz, FC/PC

TH-DX12DF - Multimode Ultrafast Detector Module, 700 - 870 nm, DC - 12 GHz, FC/PC

Fiber Pigtail Graded-Index Multimode Fiber, Ø50 µm Core / Ø125 µm Cladding, OM4, 0.200 NA

Bandwidth DC - 12 GHz(at 780 nm)

Wavelength Range 700 - 870 nm

Impulse Response 29 ps(FWHM at 780 nm)

Responsivity 0.60 A/W

Conversion Gain 15 VW

Optical Return Loss (Max) -28 dB

Noise-Equivalent Power (NEP) 43 pW/√Hz

Photodiode Bias Voltage 4V

Product Drawing
