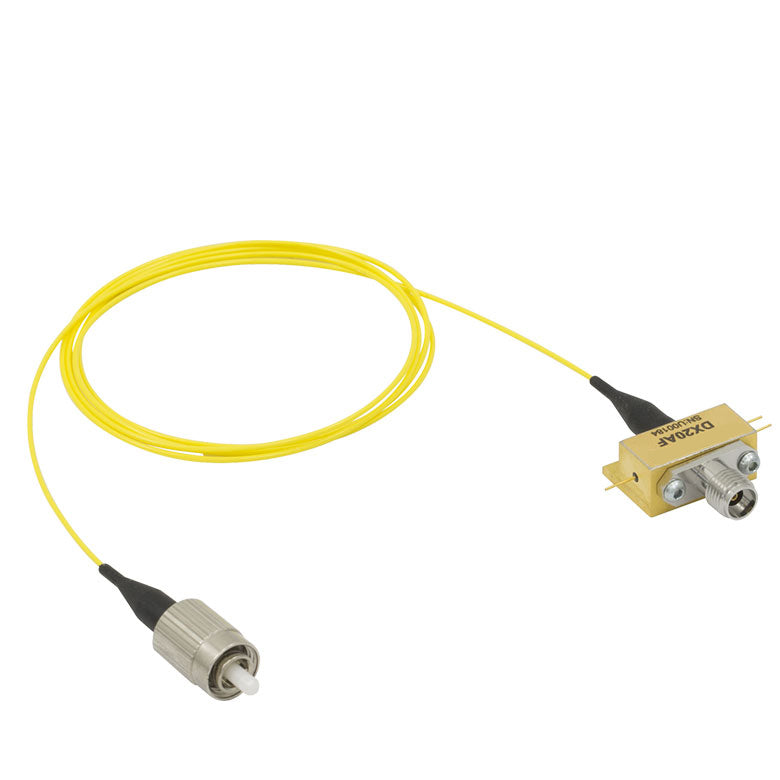

TH-DX20AF - Single Mode Ultrafast Detector Module, 1250 - 1650 nm, DC - 20 GHz, FC/PC

TH-DX20AF - Single Mode Ultrafast Detector Module, 1250 - 1650 nm, DC - 20 GHz, FC/PC

Product Drawing

Fiber Pigtail SMF-28 (SM)

Bandwidth DC - 20 GHz(at 1560 nm)

Wavelength Range 1250 - 1650 nm

Impulse Response 18 ps(FWHM at 1560 nm)

Responsivity 0.9 A/W

Conversion Gain 22.5 V/W

Optical Return Loss (Max) -25 dB

Noise-Equivalent Power (NEP) 28 pW/√Hz

Photodiode Bias Voltage 4V
