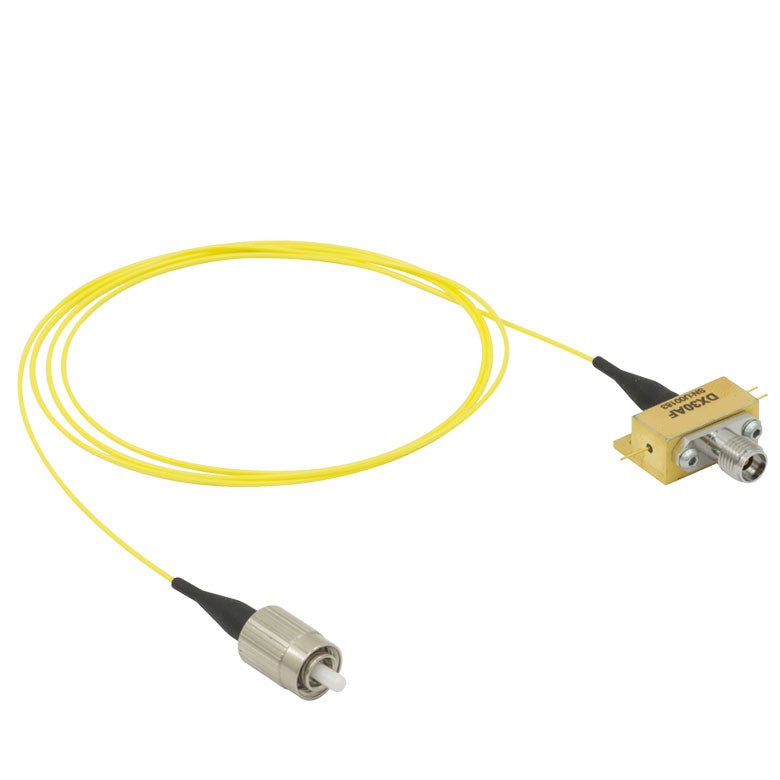

TH-DX30AF - Single Mode Ultrafast Detector Module, 750 - 1650 nm, DC - 30 GHz, FC/PC

Product Drawing

Fiber Pigtail SMF-28

Bandwidth DC - 30 GHz (at 1560 nm)

Wavelength Range 750 - 1650 nm

Impulse Response 15 ps (FWHM at 1560 nm)

Responsivity 0.5 A/W (at 850 nm) 0.7 A/W (at 1550 nm)

Conversion Gain 12.5 V/W (at 850 nm) 20 V/W (at 1550 nm)

Optical Return Loss (Max) -18 dB (at 850/1550 nm)

Noise-Equivalent Power (NEP) 32 pW/√Hz

Photodiode Bias Voltage 4V
