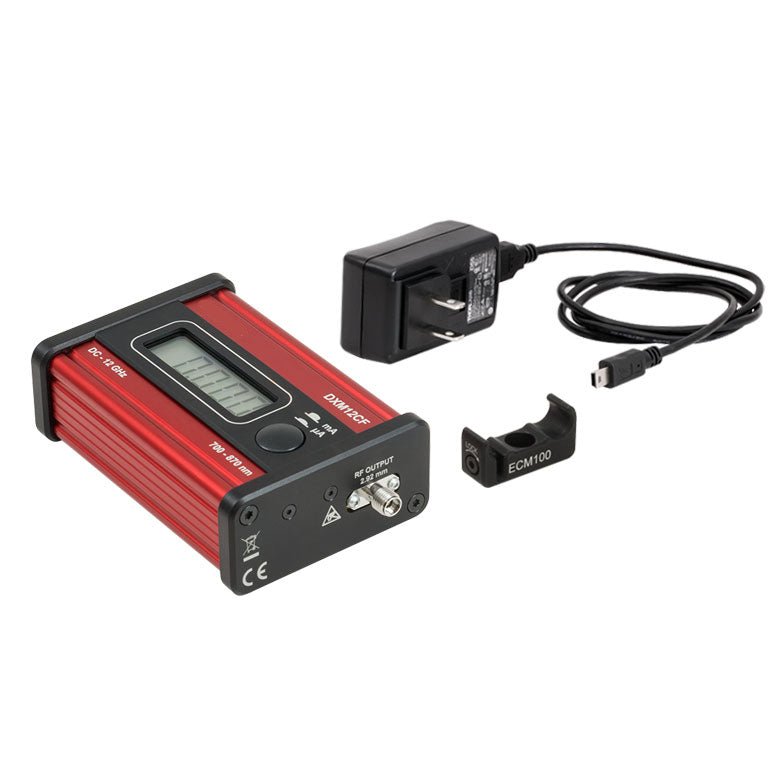

TH-DXM12CF - Single Mode Ultrafast Detector with Current Monitor, 700 - 870 nm, DC - 12 GHz, FC/PC
TH-DXM12CF - Single Mode Ultrafast Detector with Current Monitor, 700 - 870 nm, DC - 12 GHz, FC/PC
Fiber Type Ø9 µm SMF-28
Bandwidth DC - 12 GHz (at 780 nm)
Wavelength Range 700 - 870 nm
Responsivity 0.6 A/W
Conversion Gain 15 V/W
Optical Return Loss -30 dB
Noise-Equivalent Power (NEP) 43 pW/√Hz
Current Monitor Output 200 mV/mA
