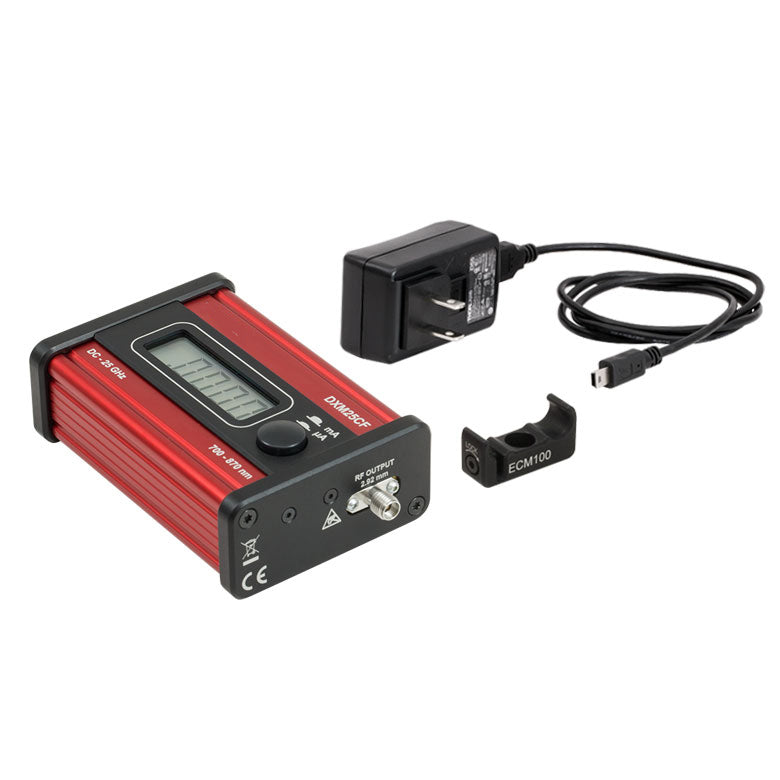

TH-DXM25CF - Single Mode Ultrafast Detector with Current Monitor, 700 - 870 nm, DC - 25 GHz, FC/PC
TH-DXM25CF - Single Mode Ultrafast Detector with Current Monitor, 700 - 870 nm, DC - 25 GHz, FC/PC
Fiber Type Ø9 µm SMF-28
Bandwidth DC - 25 GHz @ 780 nm
Wavelength Range 700 - 870 nm
Responsivity 0.5 A/W
Conversion Gain 12.5 V/W
Optical Return Loss -30 dB
Noise-Equivalent Power (NEP) 51 pW/√Hz
Current Monitor Output 200 mV/mA
